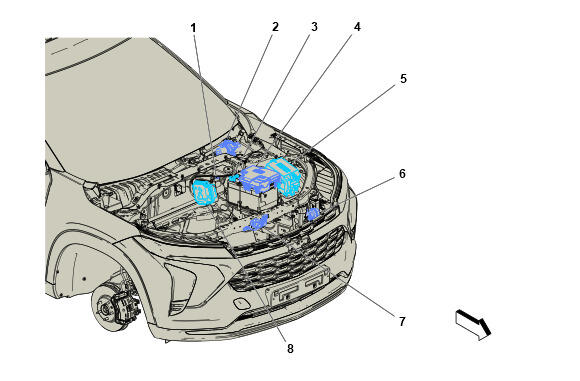

Top Left of Engine Components

GM6200805Courtesy of GENERAL MOTORS COMPANY
Items
1. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3. B110 Battery Sensor Module B110 Battery Sensor Module
4. X50D Fuse Block - Battery X50D Fuse Block - Battery X1 , or X50D Fuse Block - Battery X11 , or X50D Fuse Block - Battery X2 , or X50D Fuse Block - Battery X4 , or X50D Fuse Block - Battery X5 , or X50D Fuse Block - Battery X6 , or X50D Fuse Block - Battery X7
5. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 , or X50A Fuse Block - Underhood, Wire Entry
6. P12A Horn - High Note P12A Horn - High Note
7. B55 Engine Hood Switch B55 Engine Hood Switch
8. K160 Brake System Control Module K160 Brake System Control Module
