Communication Interface Module Replacement

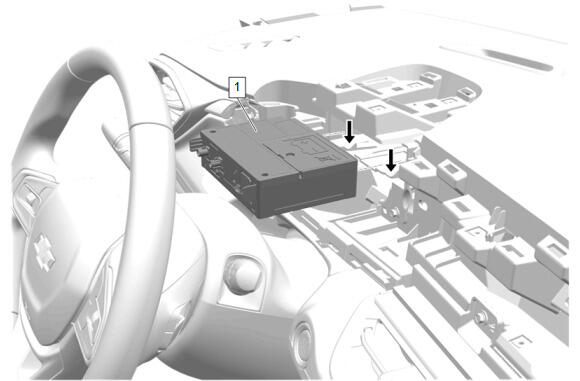

GM6323247Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Control Replacement
1 Communication Interface Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
