Fastener Specifications

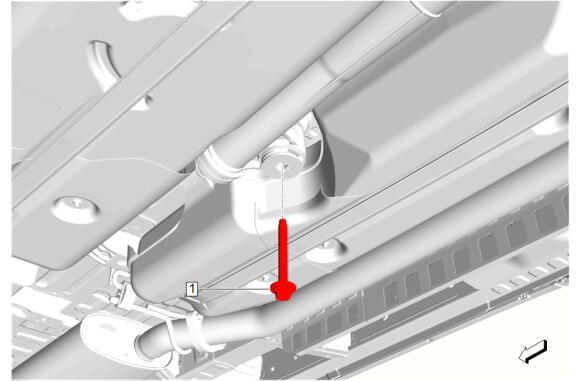

GM6388363Courtesy of GENERAL MOTORS COMPANY
Two-Piece Propeller Shaft Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Differential Carrier Front Bolt - Yes 160 N.m (118 lb ft) Two-Piece Propeller Shaft Replacement

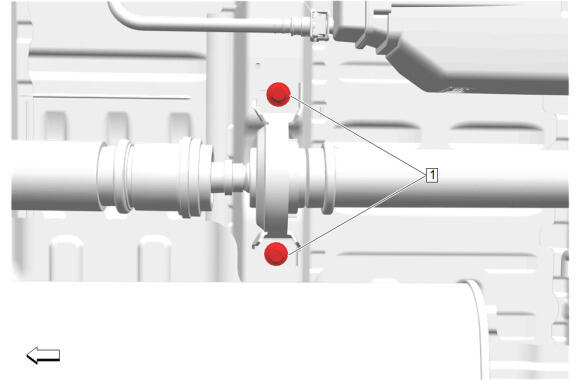

GM6397869Courtesy of GENERAL MOTORS COMPANY
Two-Piece Propeller Shaft Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Propeller Shaft Bearing Bracket Bolt [2x] - Yes 58 N.m (43 lb ft) Two-Piece Propeller Shaft Replacement

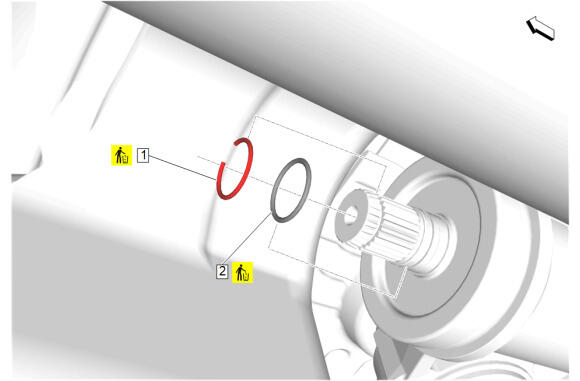

GM6383192Courtesy of GENERAL MOTORS COMPANY
Two-Piece Propeller Shaft Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Propeller Shaft to Differential Carrier Interface Retainer Yes - - Two-Piece Propeller Shaft Replacement
2 Power Transfer Unit Propeller Shaft Seal Yes - - Two-Piece Propeller Shaft Replacement

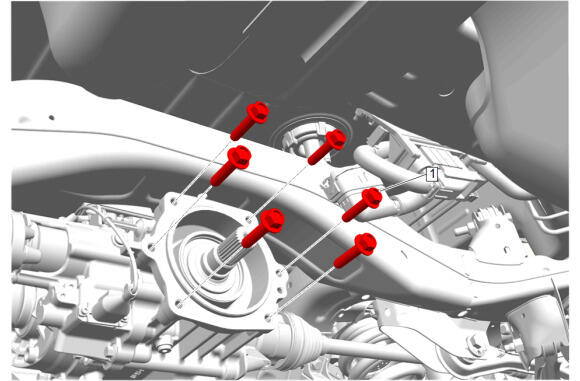

GM6398090Courtesy of GENERAL MOTORS COMPANY
Two-Piece Propeller Shaft Replacement

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Driveline Torque Tube Bolt [6x] - Yes 55 N.m (41 lb ft) Driveline Torque Tube Replacement

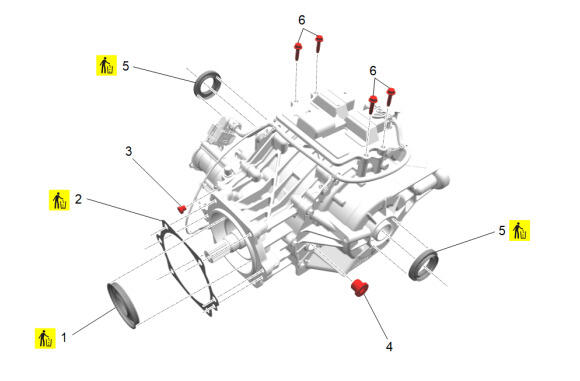

GM6398091Courtesy of GENERAL MOTORS COMPANY
Differential Carrier and Components - Z71

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Differential Drive Pinion Gear Seal Yes - - Differential Drive Pinion Gear Seal Replacement
2 Rear Wheel Drive Differential Carrier Housing Gasket Yes - - Driveline Torque Tube Replacement
3 Differential Clutch Fill Plug - - 12 N.m (106 lb in) Differential Oil Replacement
4 Lubricant Fill Plug - - 39 N.m (29 lb ft) Rear Axle Lubricant Replacement (LSLT) , or Rear Axle Lubricant Replacement (Z71, Premier)
5 Rear Axle Shaft Seal [2x] Yes - - Rear Axle Shaft Seal Replacement (LSLT) , or Rear Axle Shaft Seal Replacement (Z71, Premier)
6 Rear Differential Clutch Control Module Bolt [4x] - - 6 N.m (53 lb in) Rear Differential Clutch Control Module Replacement (LSLT) , or Rear Differential Clutch Control Module Replacement (Z71, Premier)

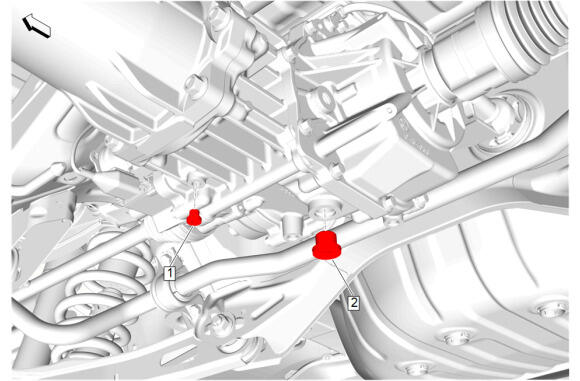

GM6398092Courtesy of GENERAL MOTORS COMPANY
Differential Carrier Mounting and Components - Z71

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Differential Clutch Drain Plug - - 12 N.m (106 lb in) Differential Carrier Bushing Replacement
2 Differential Carrier Drain Plug - - 39 N.m (29 lb ft) Rear Axle Lubricant Replacement (LSLT) , or Rear Axle Lubricant Replacement (Z71, Premier)

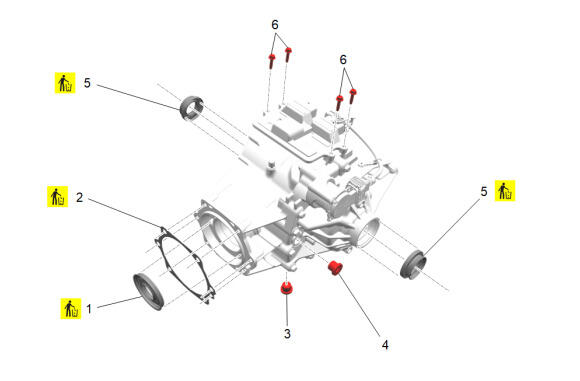

GM6411320Courtesy of GENERAL MOTORS COMPANY
Differential Carrier and Components - LSLT

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Differential Drive Pinion Gear Seal Yes - - Differential Drive Pinion Gear Seal Replacement
2 Rear Wheel Drive Differential Carrier Housing Gasket Yes - - Driveline Torque Tube Replacement
3 Differential Carrier Drain Plug - - 12 N.m (106 lb in) Differential Oil Replacement
4 Differential Carrier Fill Plug - - 39 N.m (29 lb ft) Rear Axle Lubricant Replacement (LSLT) , or Rear Axle Lubricant Replacement (Z71, Premier)
5 Rear Axle Shaft Seal [2x] Yes - - Rear Axle Shaft Seal Replacement (LSLT) , or Rear Axle Shaft Seal Replacement (Z71, Premier)
6 Rear Differential Clutch Control Module Bolt [4x] - - 6 N.m (53 lb in) Rear Differential Clutch Control Module Replacement (LSLT) , or Rear Differential Clutch Control Module Replacement (Z71, Premier)

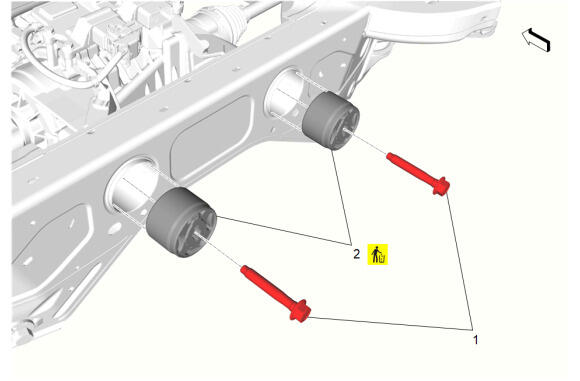

GM6398093Courtesy of GENERAL MOTORS COMPANY
Differential Carrier Mounting and Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Differential Carrier Rear Bolt [2x] - - 100 N.m (74 lb ft) Differential Carrier Assembly Replacement (LSLT) , or Differential Carrier Assembly Replacement (Z71, Premier)
2 Differential Carrier Rear Bushing [2x] Yes - - Differential Carrier Bushing Replacement
