Driver Seat Wiring Schematics
>>
Module Power, Ground, Serial Data, Actuators and Memory Controls
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

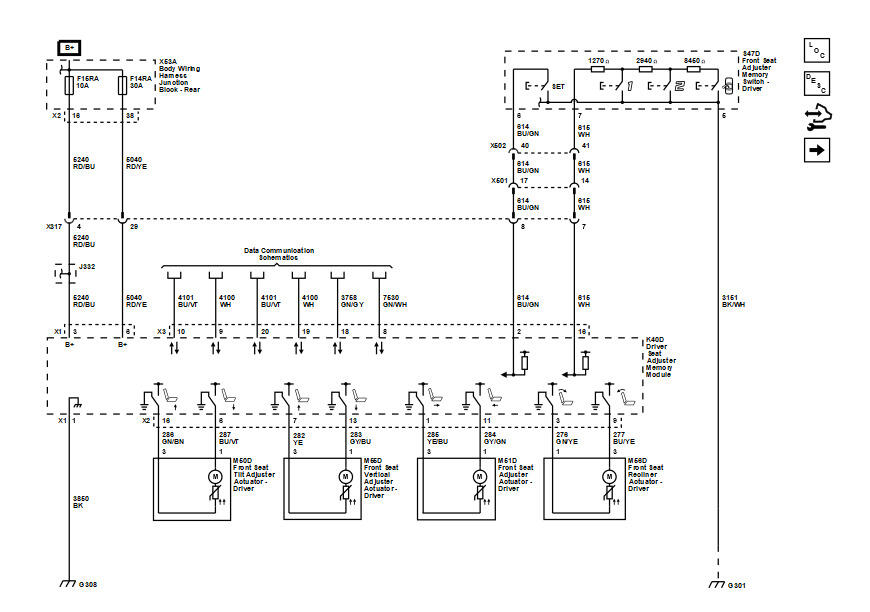

Module Power, Ground, Serial Data, Actuators and Memory Controls
Courtesy of GENERAL MOTORS COMPANY
