Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

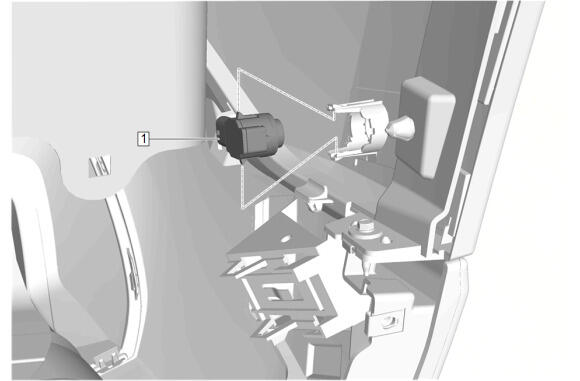

Insert the advanced rear parking assist alarm sensor (1) into the housing.
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

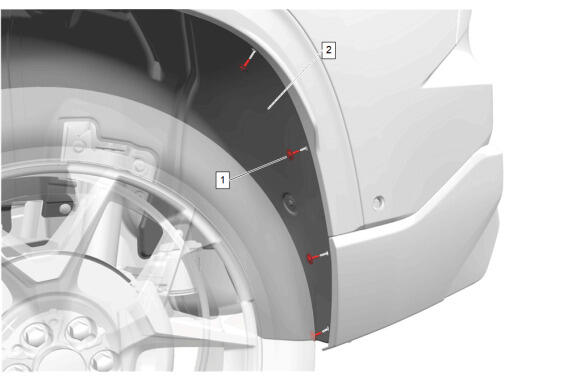

Rear Wheelhouse Liner (2) - Install

CAUTION:

Refer to Fastener Caution .

Rear Wheelhouse Liner Bolt (1) - Install and tighten [4x] - Fastener Specifications
Remove the support and lower the vehicle.
