Installation Procedure

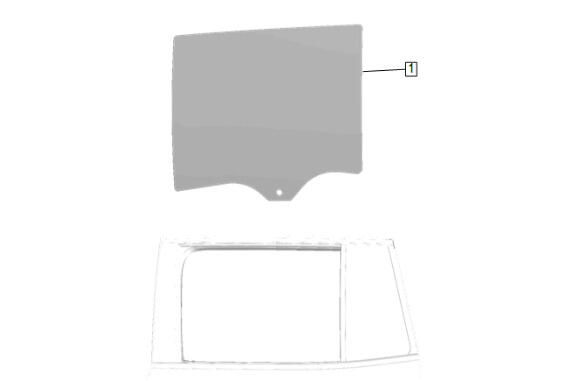

  1. GM6389474Courtesy of GENERAL MOTORS COMPANY

    Place the rear side door window (1) into the door frame in the full up position and tape in place.

  2. GM6389464Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Channel Rear Retainer (2) - Install

  3. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    4. CAUTION:

    Refer to Fastener Caution .

  5. Rear Side Door Window Channel Rear Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM6389471Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The thread locking adhesive is to be applied to the studs on the rear side door window regulator (2).

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
    7. NOTE:

    Use care when installing the window regulator (2) as the top of the track makes contact with the bottom of the window glass.

  7. Rear Side Door Window Regulator (2) - Install
  8. Connect the electrical connector.
  9. Rear Side Door Window Regulator Nut (1) - Install and tighten [4x] - Fastener Specifications

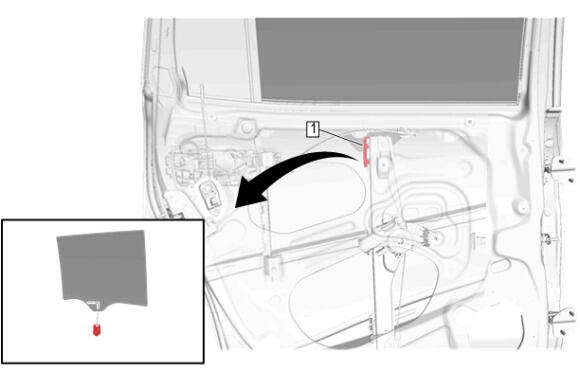

  10. GM6389469Courtesy of GENERAL MOTORS COMPANY

    Place the window regulator sash retainers (1) in the full up position.

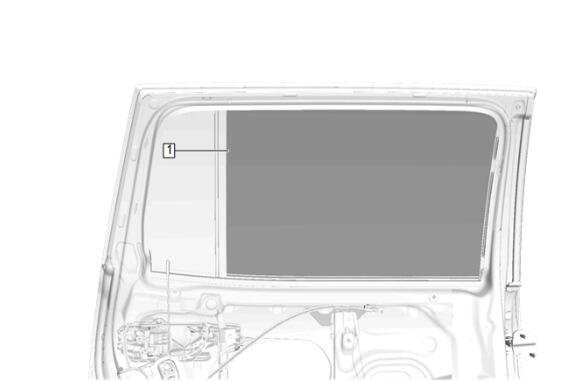

  11. GM6389470Courtesy of GENERAL MOTORS COMPANY

    Remove the tape holding the rear side door window (1) in the full up position.

  12. GM6399536Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When reinstalling the rear side door water deflector (1) ensure that the integral locators are installed properly and that the rear side door water deflector (1) is secured and leakproof.

    Route the rear side door inside handle cable through the hole in rear side door water deflector (1) while installing it to the door.

  13. Rear Side Door Water Deflector (1) - Install
  14. GM6399533Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Armrest Pull Cup Bracket (2) - Install

  15. Rear Side Door Armrest Pull Cup Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  16. Ensure the window system operates properly.

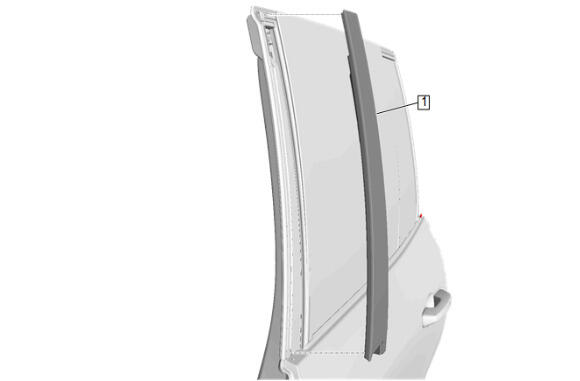

  17. GM6389466Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Frame Front Applique (1) - Install

  18. GM6389465Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Window Frame Front Applique Bolt (1) - Install and tighten [2x] - Fastener Specifications

  19. GM6389463Courtesy of GENERAL MOTORS COMPANY

    Install by pressing down firmly on the rear side door window belt reveal molding (1) until seated to the pinch-weld flange on the door panel.

  20. Rear Side Door Window Belt Reveal Molding (2) - Install
  21. Rear Side Door Window Belt Reveal Molding Bolt (1) - Install and tighten [2x] - Fastener Specifications
  22. Reinstall the weatherstrip back to its original position.

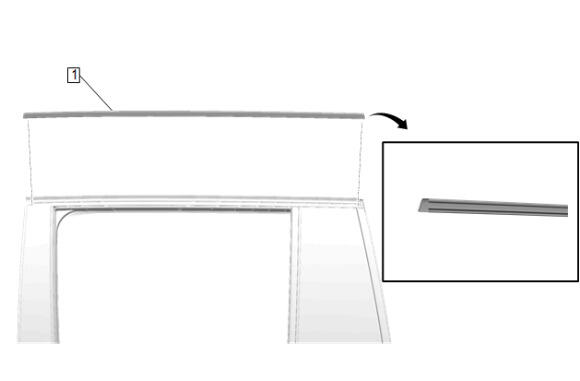

  23. GM6389475Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT slide the molding

    Spray the rear side door weatherstrip with a suitable lubricant to assist in installing the rear side door upper reveal molding (1) onto the center of the weatherstrip straight on.

  24. Rear Side Door Window Upper Reveal Molding (1) - Install

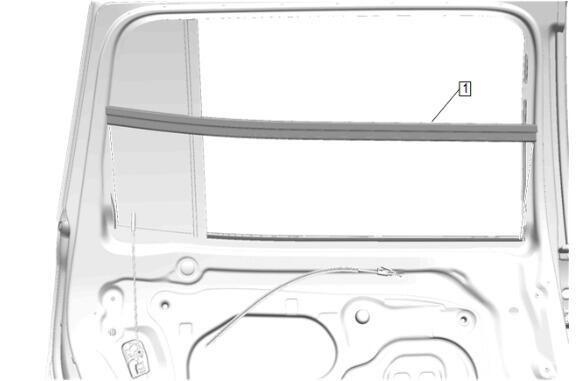

  25. GM6389468Courtesy of GENERAL MOTORS COMPANY

    Install the sealing strip (1) to the flange of the door and push downward until fully seated.

  26. Rear Side Door Window Inner Sealing Strip (1) - Install

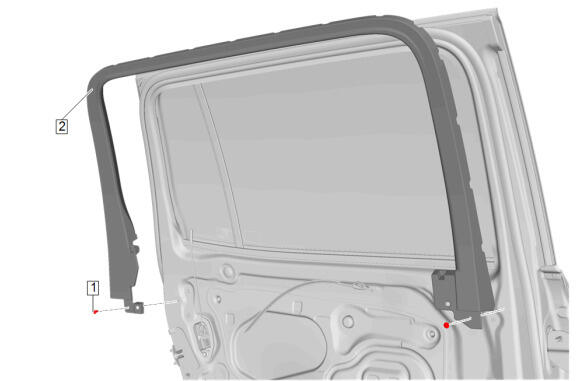

  27. GM6399537Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the door weatherstrip is not trapped below the rear side door window garnish molding (2) once completely installed. Reposition the weatherstrip as necessary.

    Rear Side Door Window Garnish Molding (2) - Install

  28. Rear Side Door Garnish Molding Retainer (1) - Install [2x]
  29. Rear Side Door Trim - Install - Rear Side Door Trim Removal and Installation
