Installation Procedure

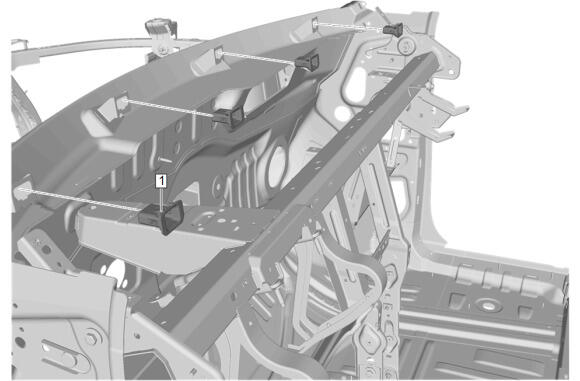

  1. GM6399512Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Location Guide (1) - Install [4x]

  2. Instrument Panel Assembly - Install - Instrument Panel Removal and Installation
