Removal Procedure

  1. Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

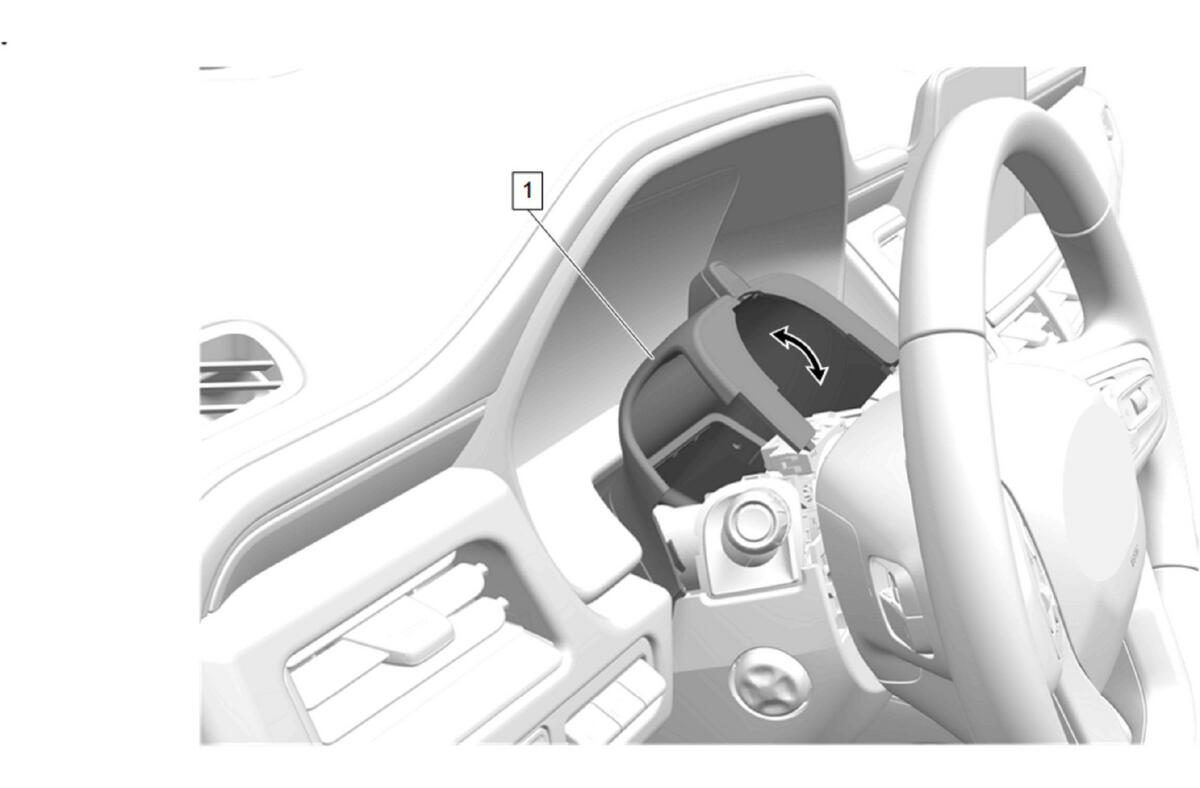

  2. GM6287034Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.

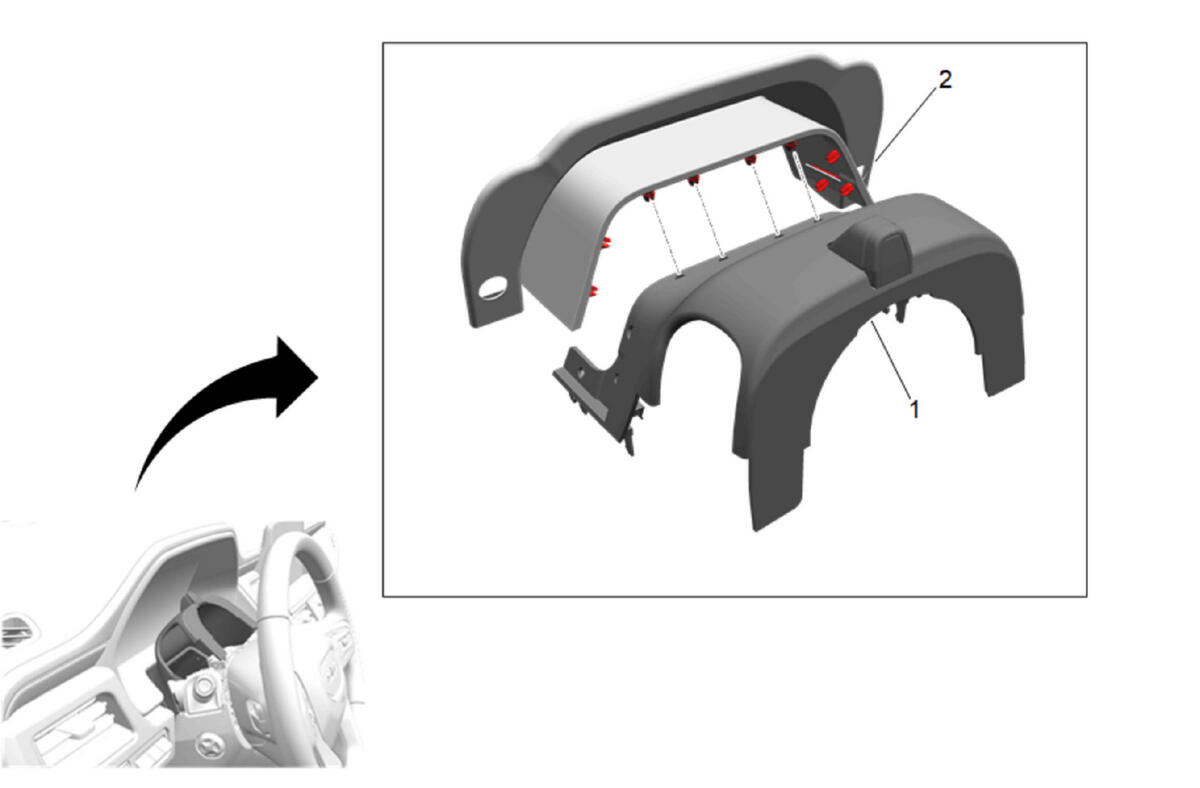

  3. GM6287038Courtesy of GENERAL MOTORS COMPANY

    Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column opening closeout (2).

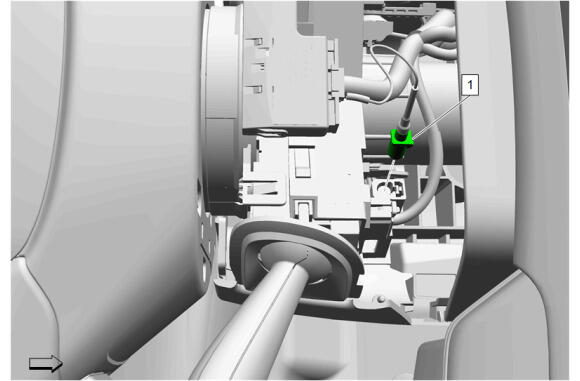

  4. GM5620282Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

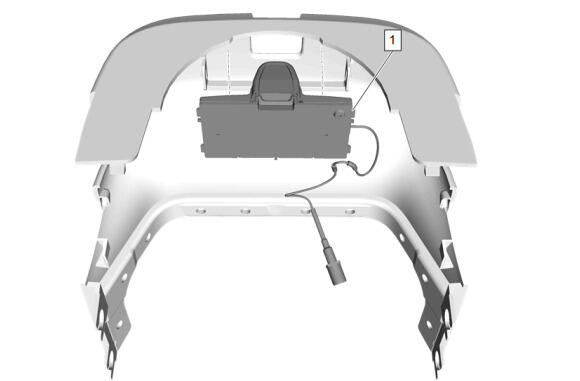

  5. GM5620283Courtesy of GENERAL MOTORS COMPANY

    Driver Monitoring System Camera (1) - Remove
