Air Cleaner Element Replacement

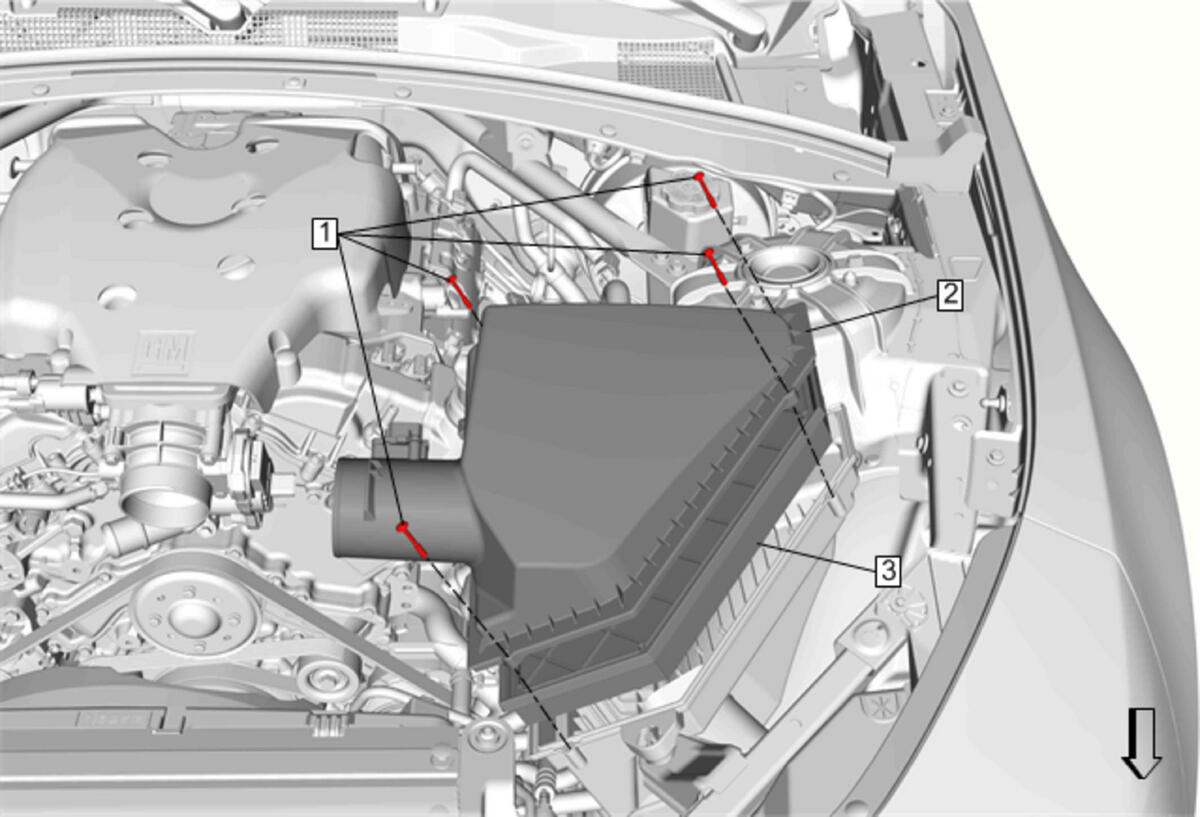

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Air Cleaner Upper Housing Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Air Cleaner Upper Housing |
| 3 | Air Cleaner Element Procedure Reset the air filter life system. GM Air Filter Life System Resetting (Without Scan Tool) , or GM Air Filter Life System Resetting (With Scan Tool) |
