Fastener Specifications

GM5554638Courtesy of GENERAL MOTORS COMPANY
Forward Collision Alert Display

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Collision Alert Display Bolt [2x] - - 2.5 N.m (22 lb in) Forward Collision Alert Display Replacement

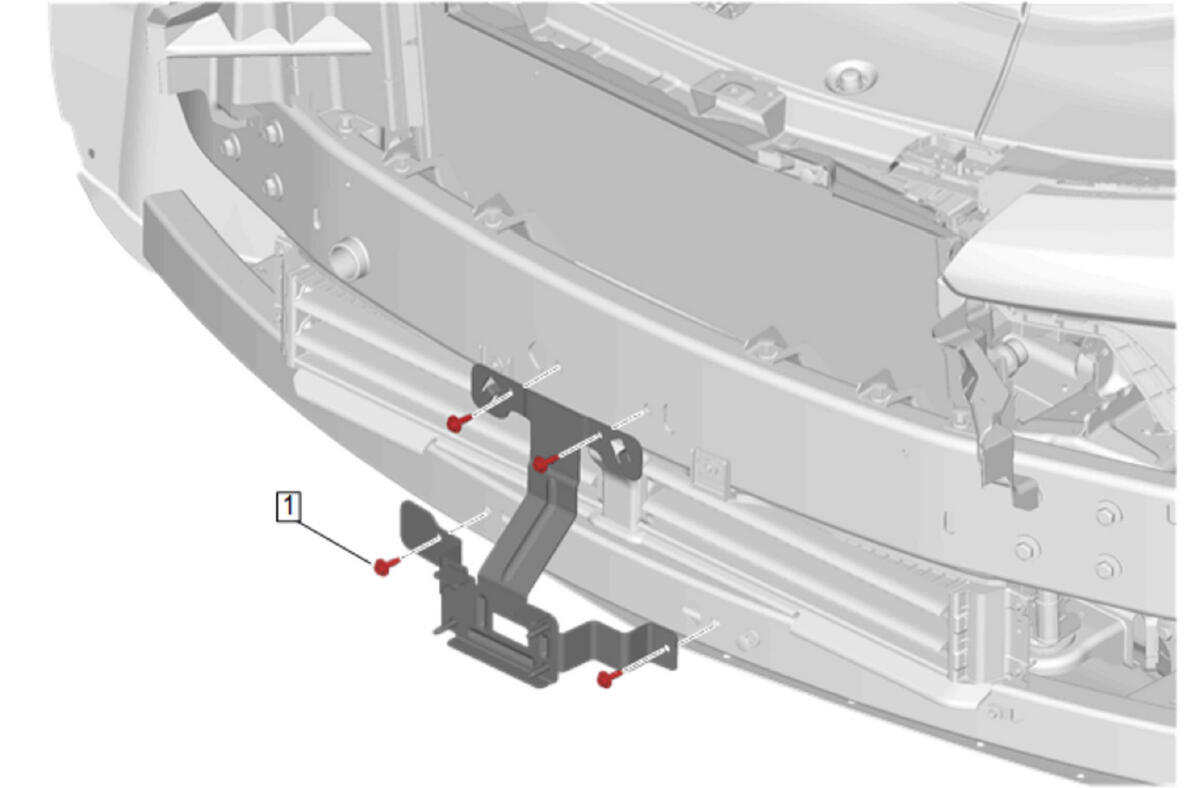

GM6324196Courtesy of GENERAL MOTORS COMPANY
Forward Range Radar Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Range Radar Bracket Bolt [4x] - - 9 N.m (80 lb in) Forward Range Radar Bracket Replacement

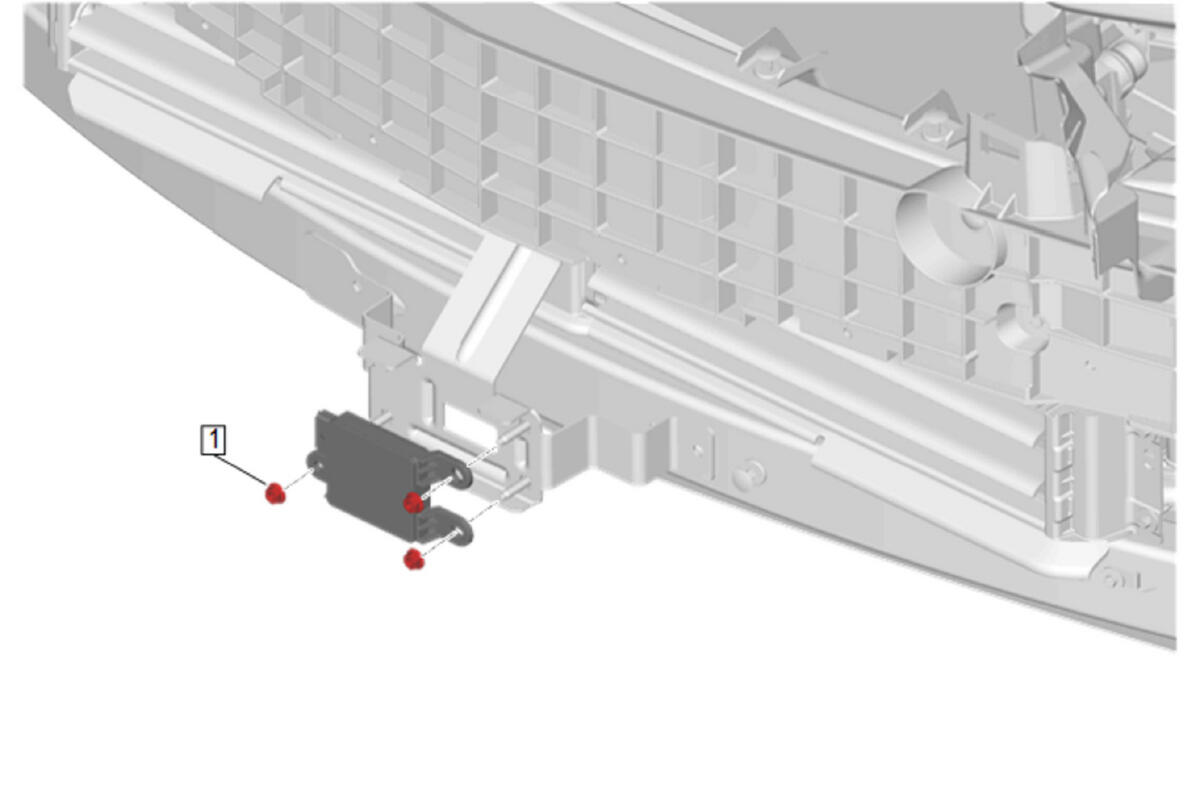

GM6324197Courtesy of GENERAL MOTORS COMPANY
Forward Range Radar Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Forward Range Radar Sensor Nut [3x] - - 9 N.m (80 lb in) Forward Range Radar Sensor Replacement

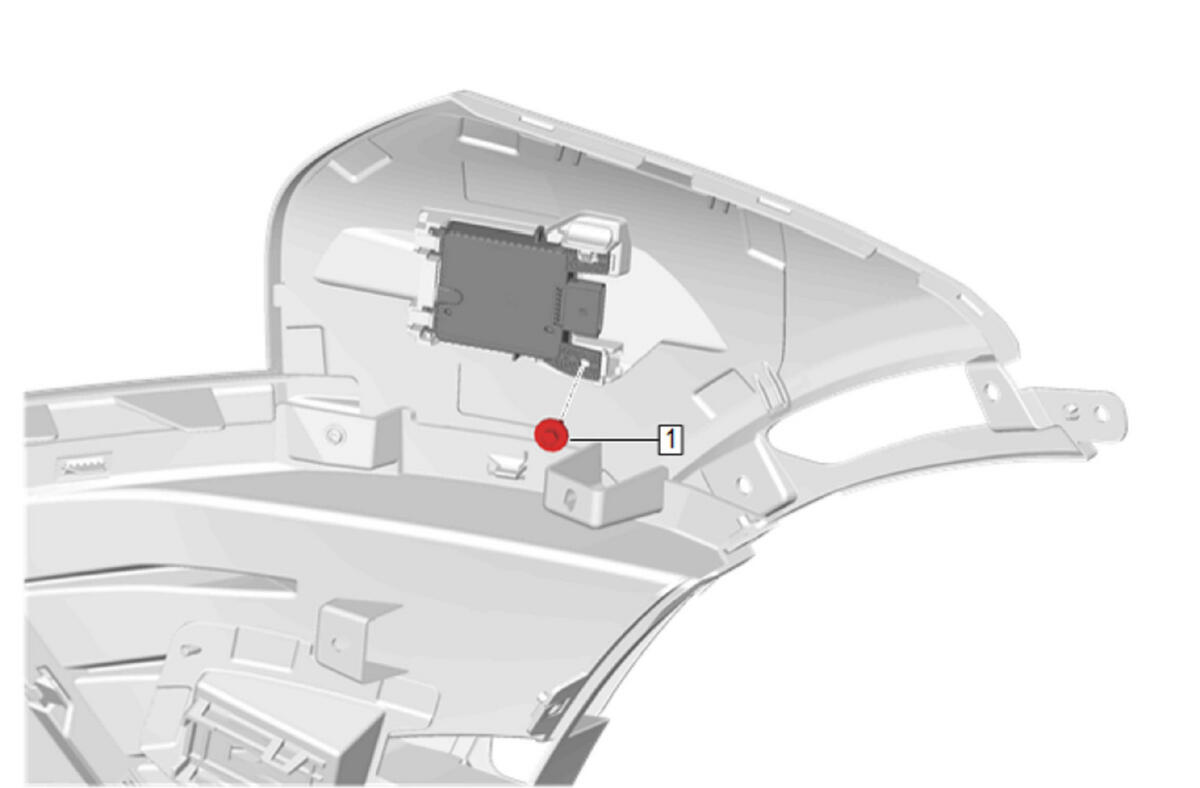

GM6324198Courtesy of GENERAL MOTORS COMPANY
Front Short Range Radar Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Short Range Radar Sensor Bolt - - 2.5 N.m (22 lb in) Front Short Range Radar Sensor Replacement

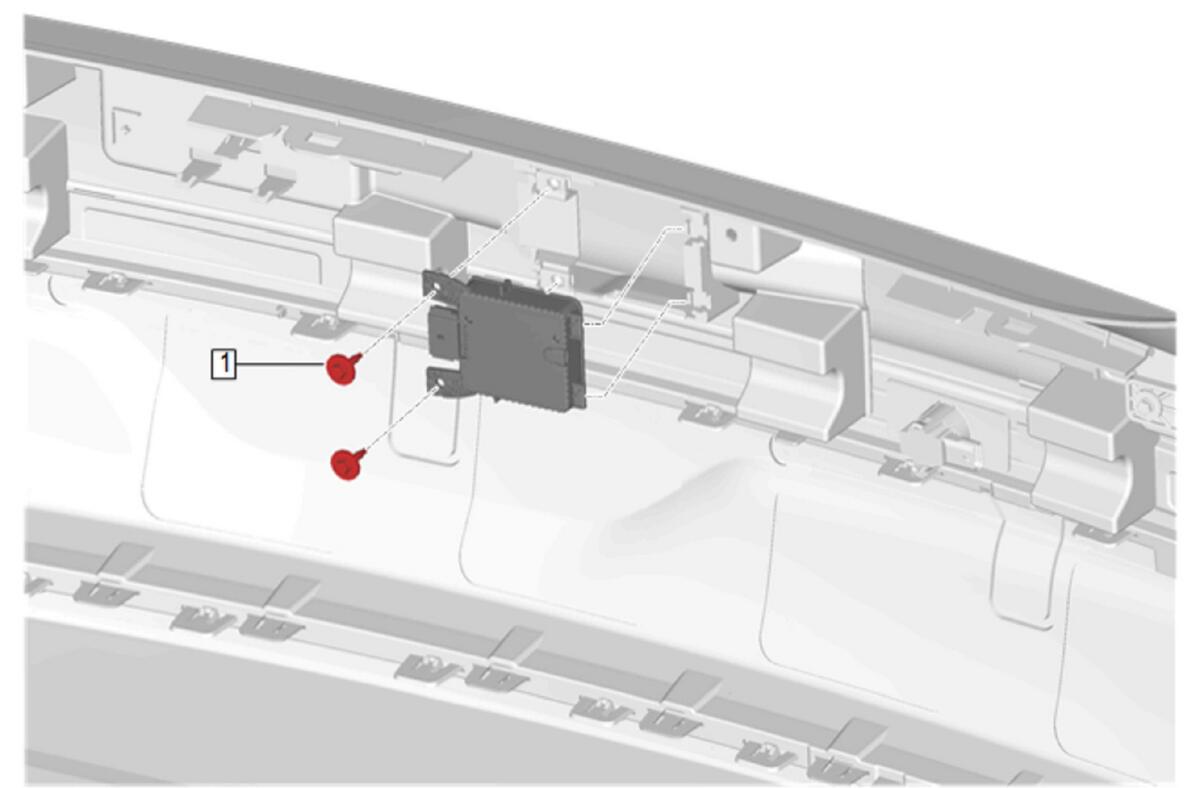

GM6324199Courtesy of GENERAL MOTORS COMPANY
Short Range Radar Rear Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Short Range Radar Sensor Bolt [2x] - - 2.5 N.m (22 lb in) Short Range Radar Rear Sensor Replacement

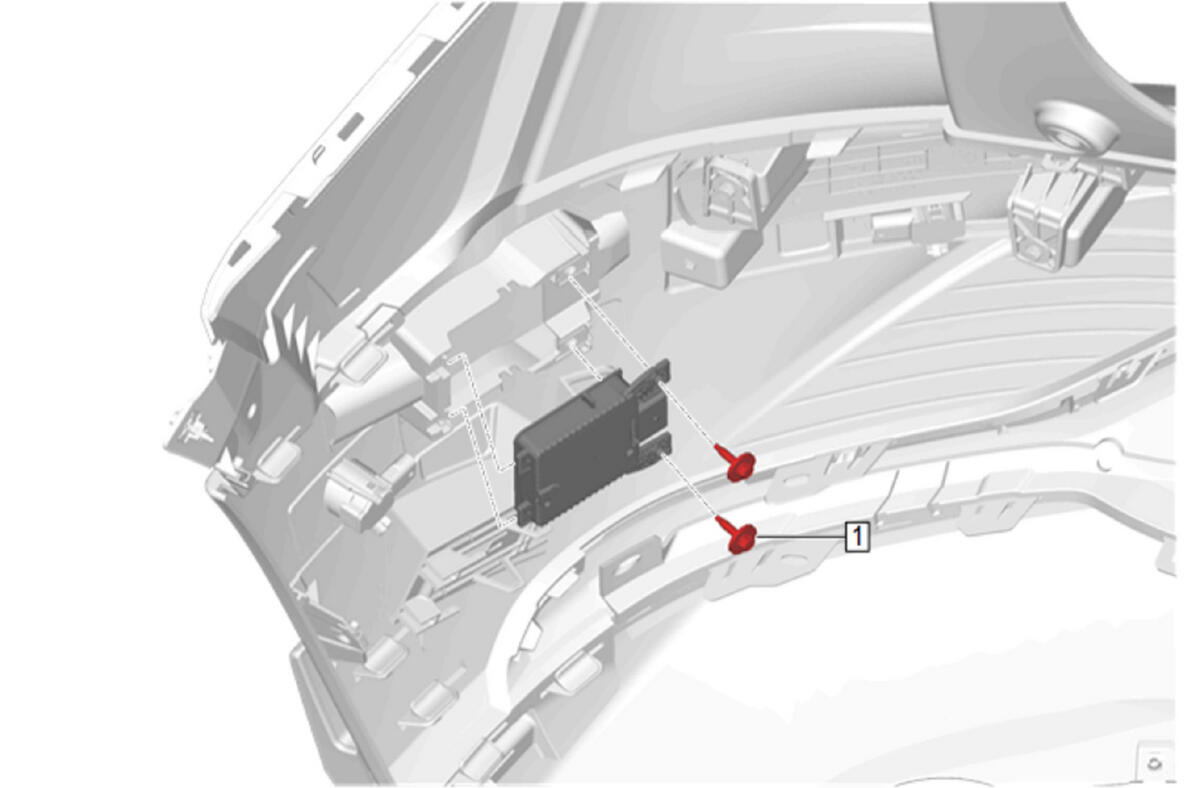

GM6324200Courtesy of GENERAL MOTORS COMPANY
Short Range Radar Rear Side Sensor

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Short Range Radar Sensor Bolt [2x] - - 2.5 N.m (22 lb in) Short Range Radar Rear Side Sensor Replacement
