Removal Procedure

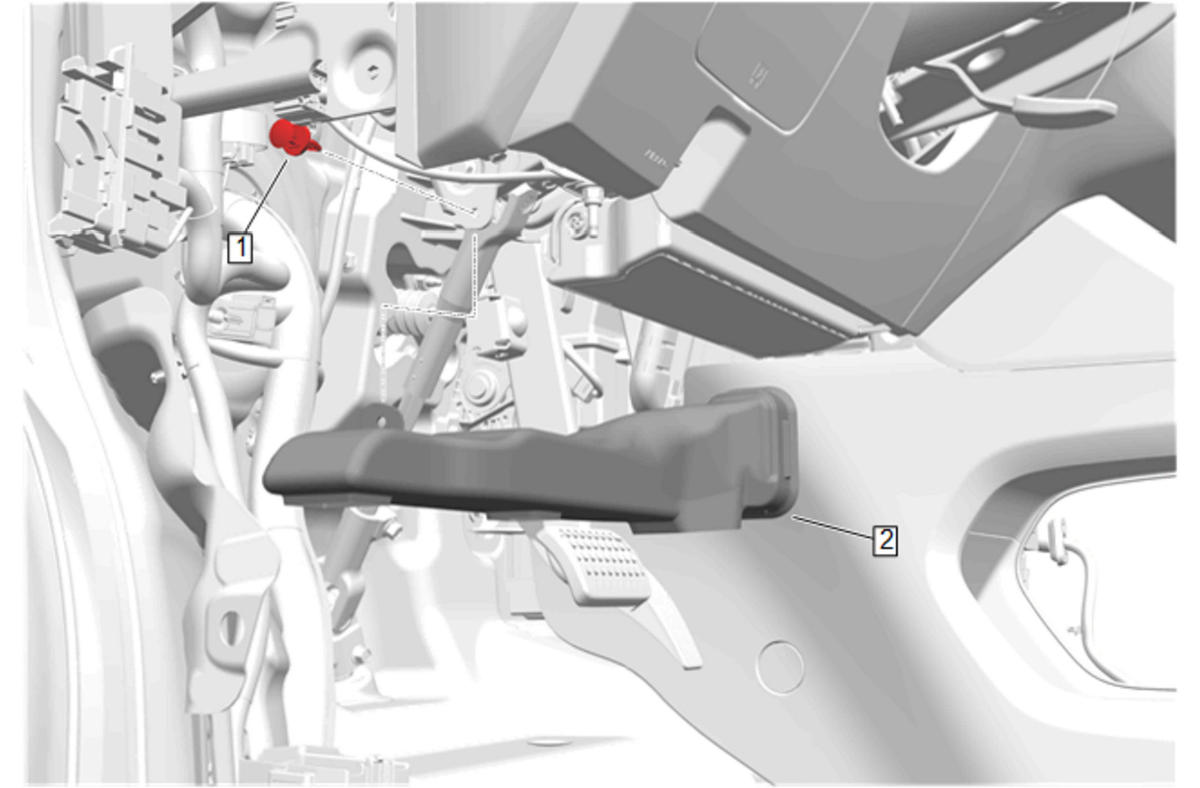

  1. GM5670428Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct Retainer (1) - Remove

  2. Floor Front Air Outlet Duct - Left Side (2) - Remove

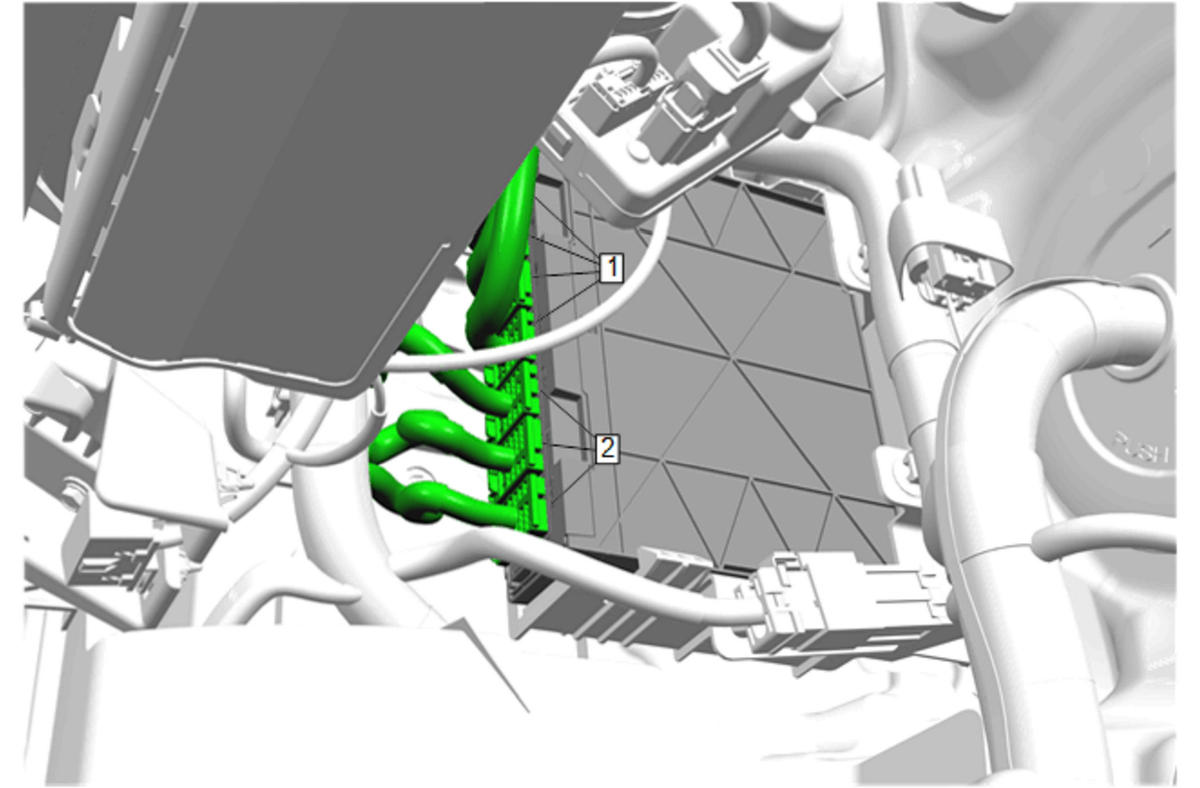

  3. GM5699326Courtesy of GENERAL MOTORS COMPANY

    Body Wiring Harness (1) - Disconnect [4x]

  4. Instrument Panel Wiring Harness (2) - Disconnect [3x]

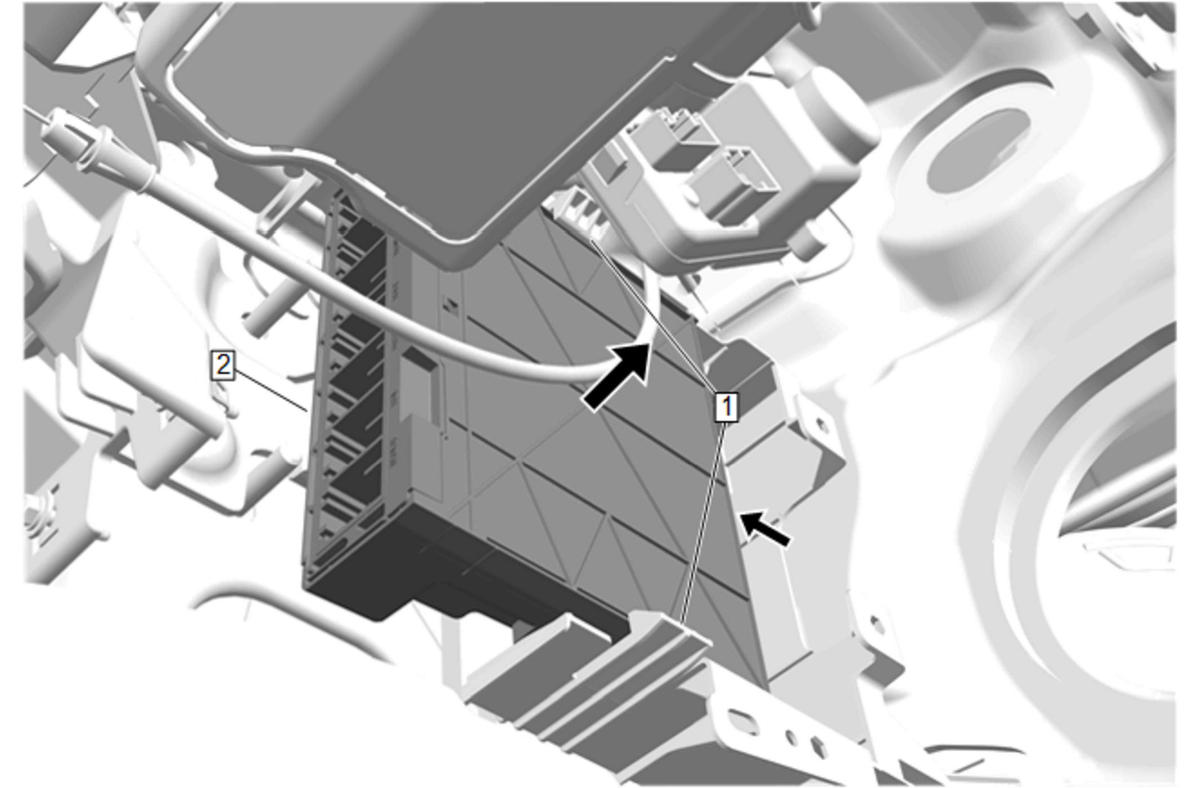

  5. GM5699327Courtesy of GENERAL MOTORS COMPANY

    While pushing the retaining tab, slightly slide the module rearward.

  6. Push the [2x] retaining tabs (1) and pull the module out from its bracket.
  7. Body Control Module (2) - Remove
