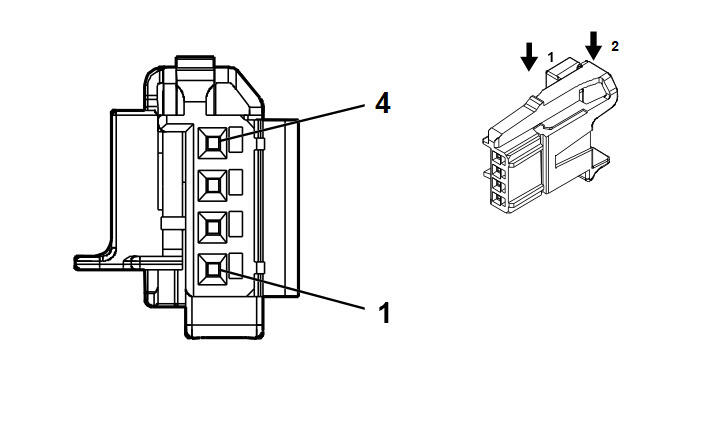

K77 Remote Control Door Lock Receiver
WARNING: This page is about a different car, the 2022 Cadillac XT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 35091223
- Service Connector: 19371213
- Description: 4-Way F 0.64 Micro-Quadlock Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 2 |
0.13 |
YE |
3274 |
Remote Control Door Lock Receiver Transmit Signal |
I |
- |
| 3 |
0.13 |
BU |
3275 |
Remote Control Door Lock Receiver Receive Signal |
I |
- |
| 4 |
0.35 |
GY / WH |
3272 |
Remote Control Door Lock Receiver Control |
I |
- |
