Removal Procedure

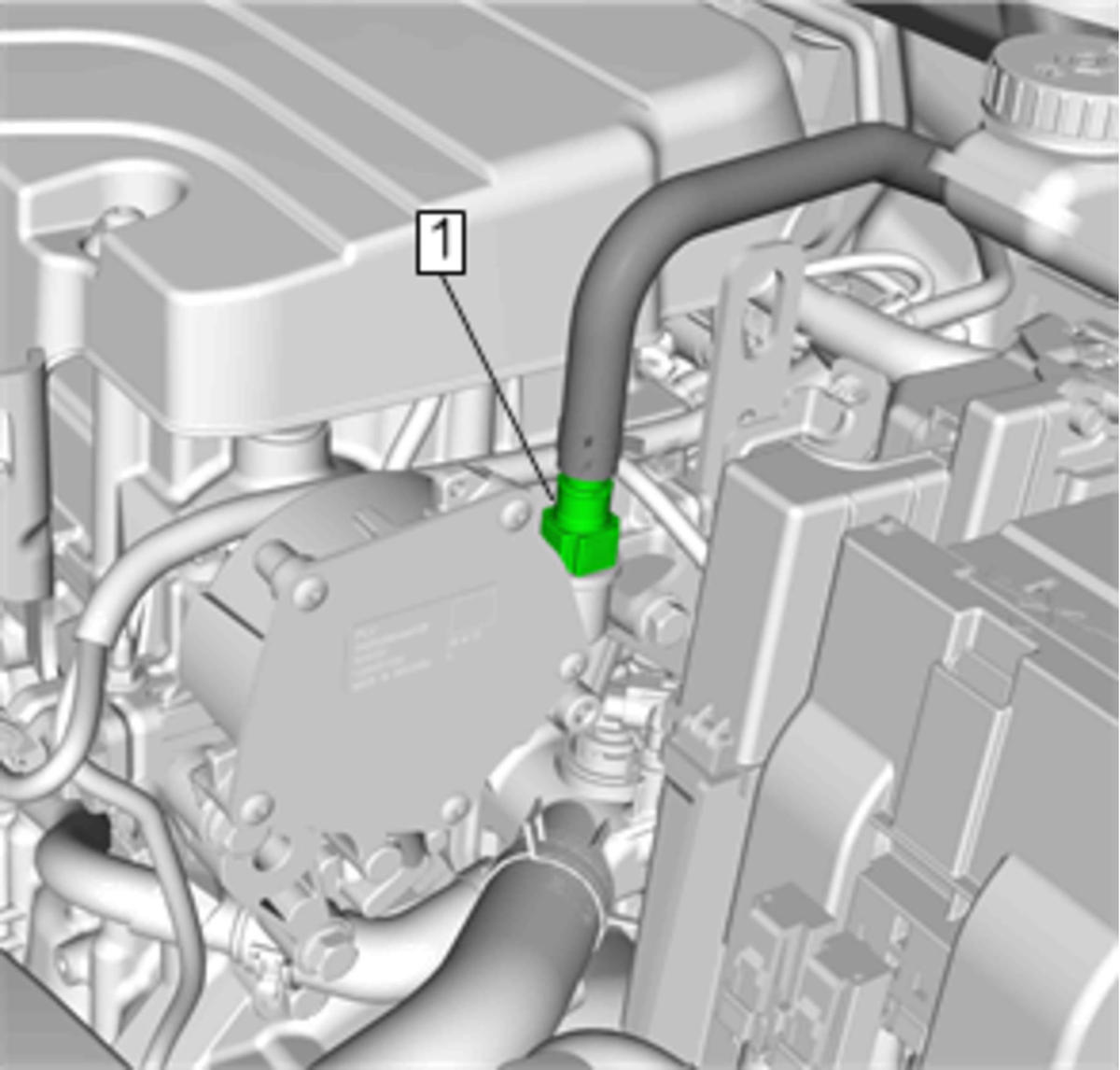

  1. GM4230575Courtesy of GENERAL MOTORS COMPANY

    Remove the brake booster vacuum pipe (1) from the vacuum pump. Refer to Plastic Collar Quick Connect Fitting Service .

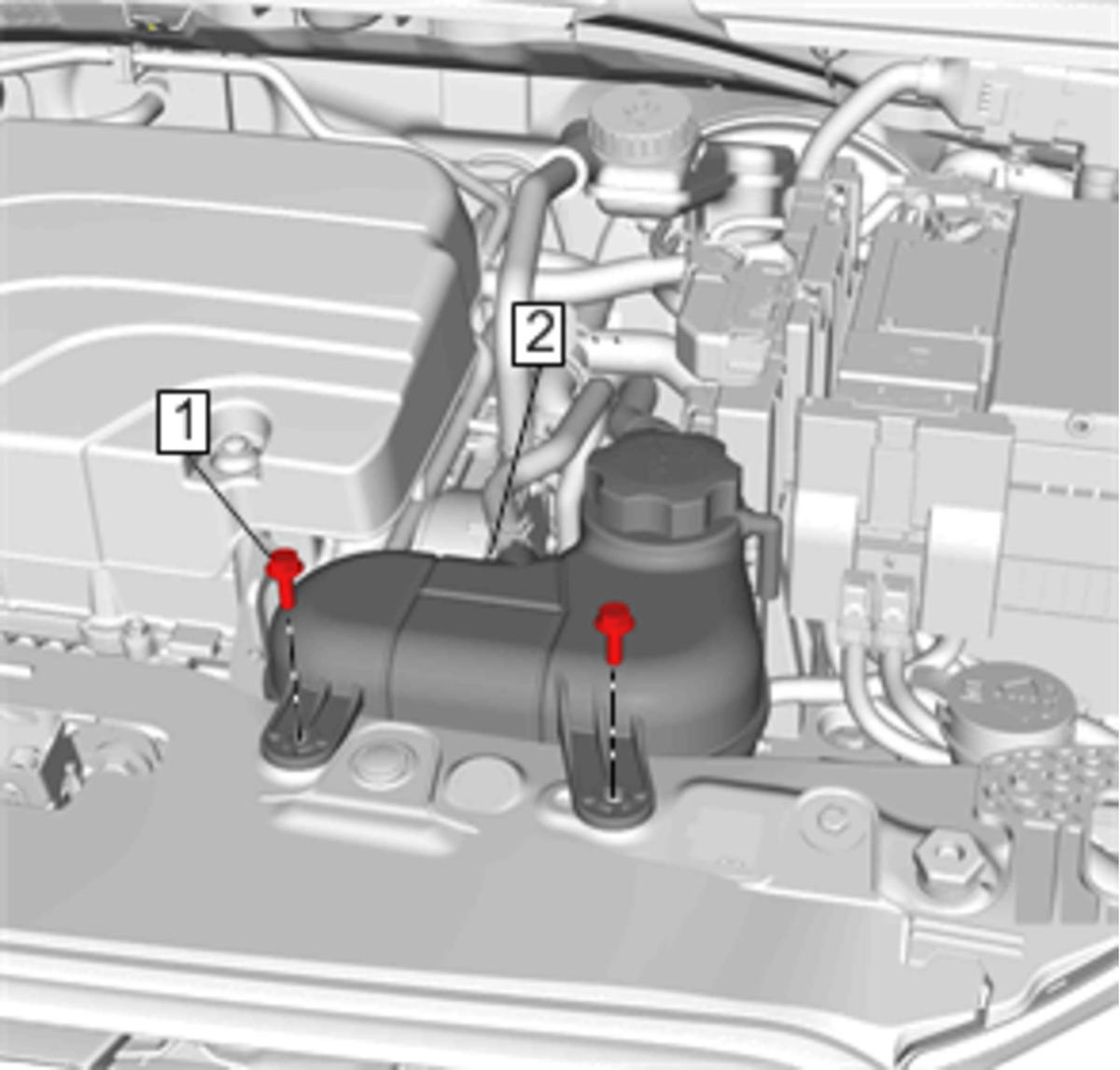

  2. GM4230576Courtesy of GENERAL MOTORS COMPANY

    Remove the surge tank fixing bolts and set aside.

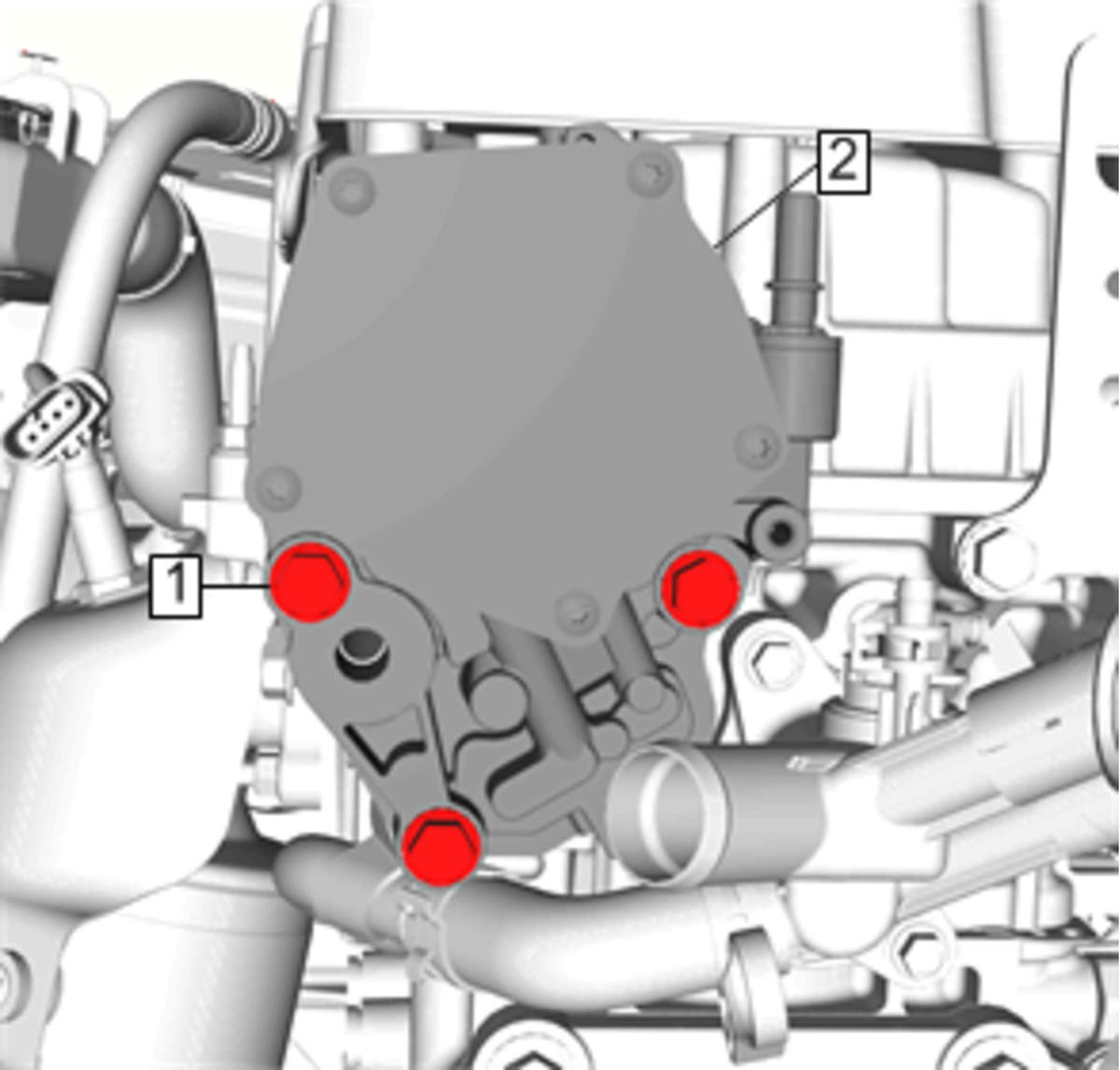

  3. GM4230578Courtesy of GENERAL MOTORS COMPANY

    Remove the 3 vacuum pump bolts (1).

  4. Remove the vacuum pump (2).
  5. Remove and DISCARD the vacuum pump gasket.
