Installation Procedure
WARNING: This page is about a different car, the 2020 Chevrolet Silverado 1500. However, it is still accessible from the selected car via links, so may be relevant.
Remote Function Actuator Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connector.
- NOTE:
Left side shown, right side similar.
Ensure the right side seat belt webbing in not caught by panel clip tower and is in front of it.
- Body Lock Pillar Garnish Molding-Right Side (3) - Install
- Body Lock Pillar Garnish Molding Bolt -Right Side (2) - Install and tighten - Fastener Specifications
- Center Pillar Upper Trim Panel Bolt Cap-Right Side (1) - Install
- NOTE:
Left side shown, right side similar.

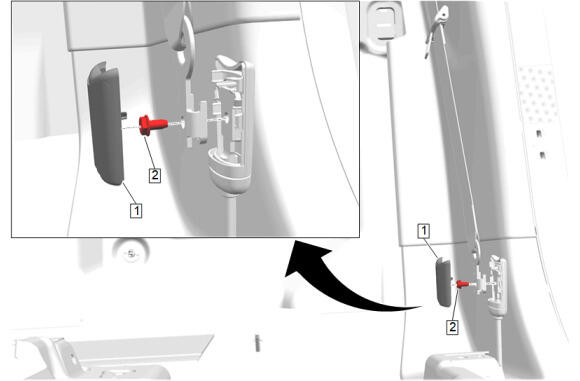

Front Seat Belt Anchor Plate Tensioner Bolt-Right Side (2) - Install and tighten - Fastener Specifications
- Front Seat Belt Anchor Plate Tensioner Cover-Right Side (1) - Install
Rear Window Lower Garnish Molding-Right Side (1) - Install
- Install the front center seat. Front Center Seat Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
