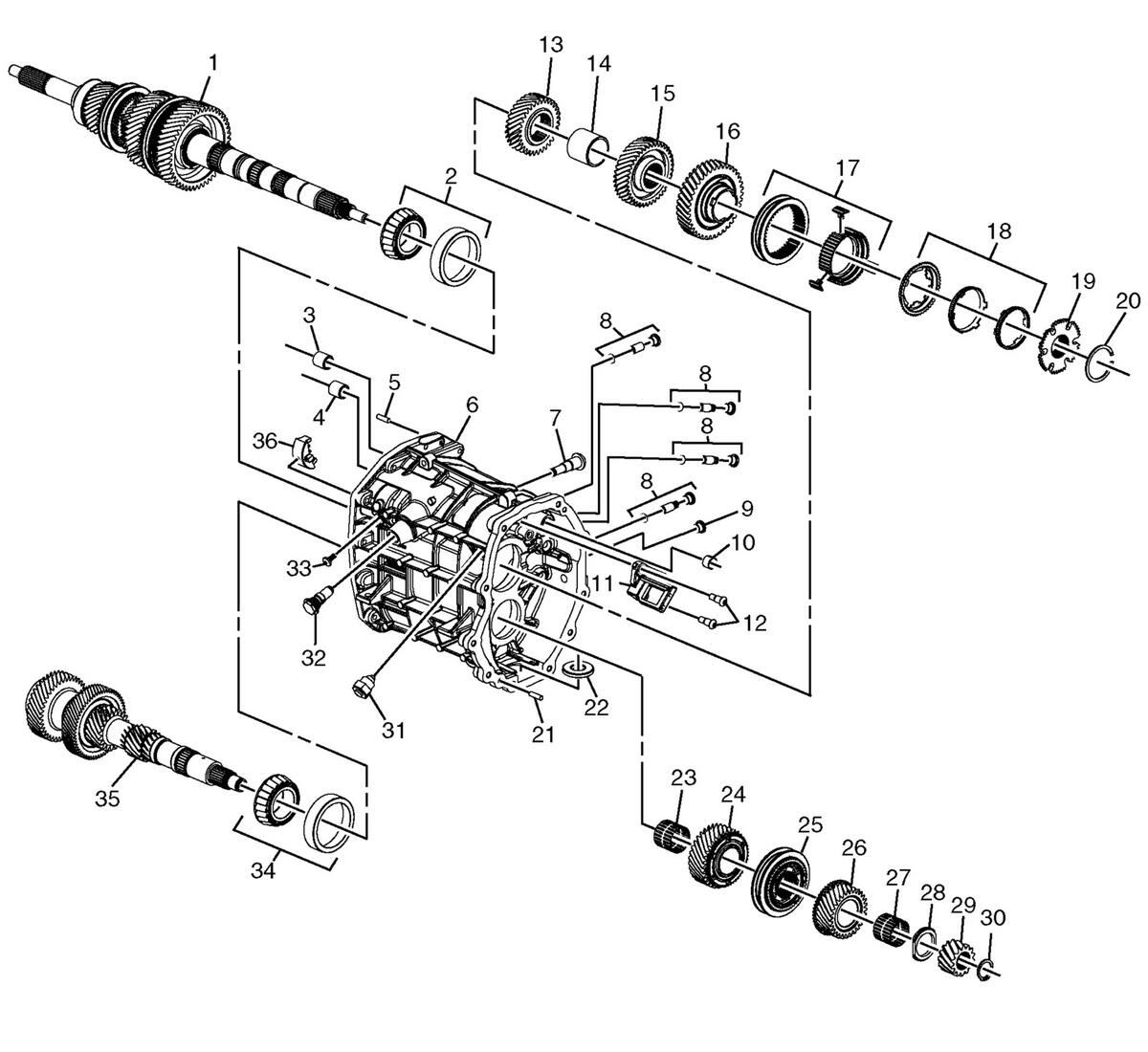

| 1 |
Main Shaft Assembly |
| 2 |
Main Shaft Bearing Assembly |
| 3 |
Shift Shaft Bearing Assembly |
| 4 |
Shift Shaft Bearing Assembly |
| 5 |
Transmission Intermediate Case Locating Pin |
| 6 |
Transmission Case Assembly |
| 7 |
Manual Transmission Selector Lever Pivot Pin (5th Gear) |
| 8 |
Shift Shaft Detent Assembly |
| 9 |
Shift Shaft Plug |
| 10 |
Manual Transmission Shift Lever Rod Bushing |
| 11 |
Shift Bar Support (Interlock) |
| 12 |
Shift Interlock Plate Retainer Bolt |
| 13 |
4th Speed Gear (Driven) |
| 14 |
3rd & 4th Gear Spacer |
| 15 |
3rd Gear Assembly (Driven) |
| 16 |
Reverse Gear Kit |
| 17 |
Reverse Synchronizer Assembly |
| 18 |
Reverse Blocking Ring Assembly |
| 19 |
Reverse Gear |
| 20 |
Reverse Gear Retainer |
| 21 |
Transmission Intermediate Case Locating Pin |
| 22 |
Transmission Magnet |
| 23 |
4th Gear Bearing Assembly (Drive) |
| 24 |
4th Gear Assembly (Drive) |
| 25 |
3rd & 4th Synchronizer Assembly |
| 26 |
3rd Gear Assembly (Drive) |
| 27 |
3rd Gear Bearing Assembly (Drive) |
| 28 |
3rd Gear Thrust Washer |
| 29 |
Reverse Gear (Drive) |
| 30 |
Counter Gear Rear Bearing Inner Race Retainer |
| 31 |
Shift Interlock Detent Assembly |
| 32 |
Manual Shift Detent Bolt |
| 33 |
Shift Control Shaft Position Guide Bolt/Screw |
| 34 |
Counter Gear Bearing Assembly |
| 35 |
Counter Gear Assembly |
| 36 |
Shift Control Shaft Position Guide |
