Rear Seat Heater Control Module Replacement

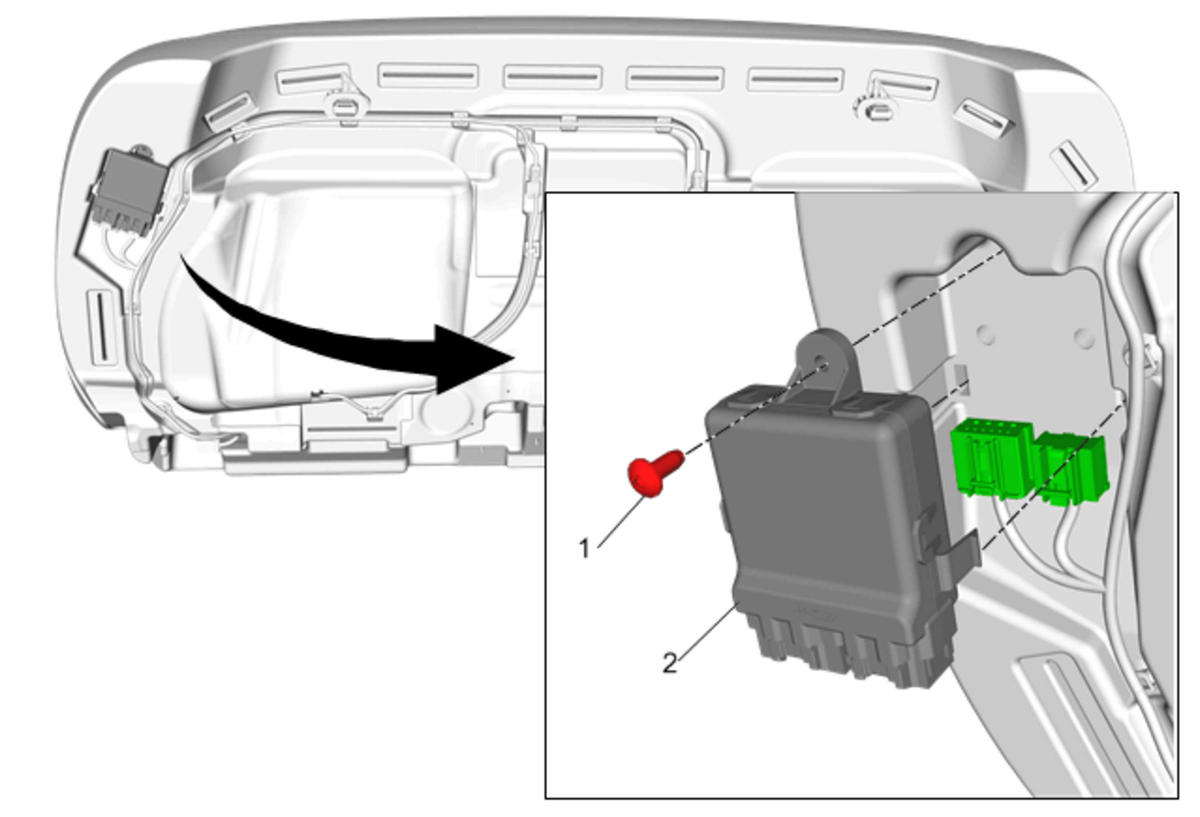

GM4575533Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Cushion - Remove - Rear Seat Cushion Removal and Installation
1 Rear Seat Heater Control Module Retainer
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Rear Seat Cushion - Install - Rear Seat Cushion Removal and Installation
