Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4256655Courtesy of GENERAL MOTORS COMPANY

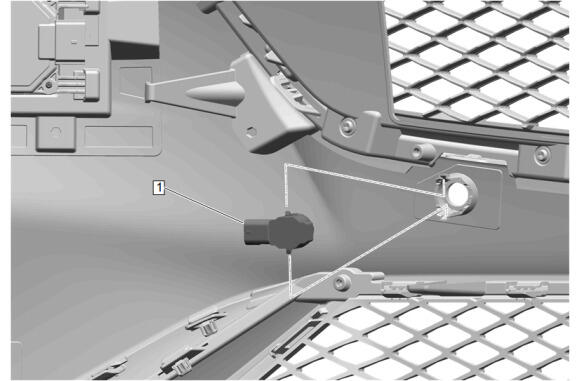

    Parking Assist Alarm Sensor Ring (1) - Install

  2. GM5471164Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

    Insert the sensor (1) into the housing.

  3. Connect the electrical connector.
  4. GM5412090Courtesy of GENERAL MOTORS COMPANY

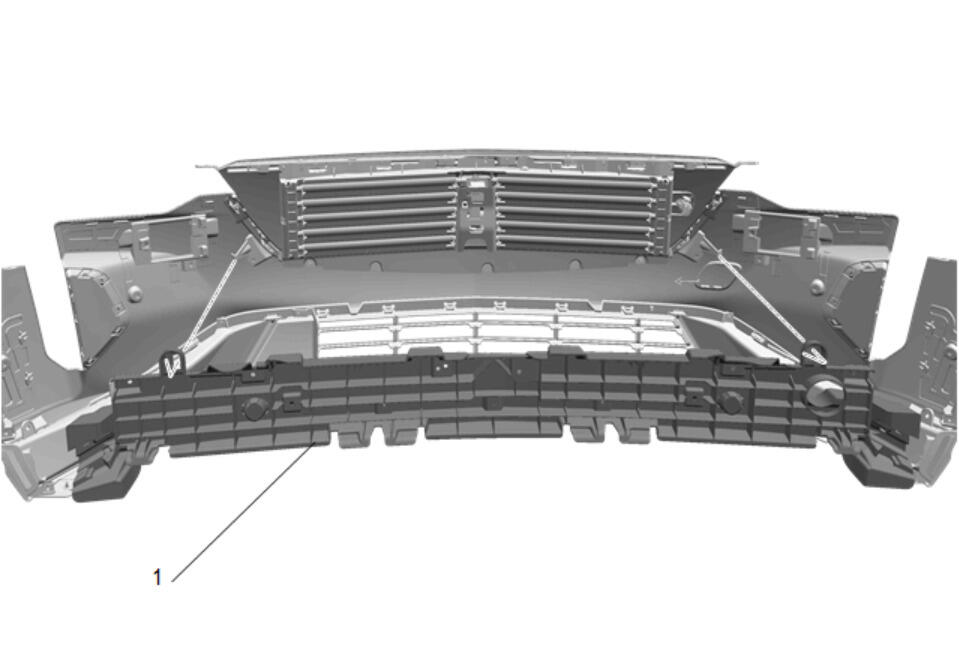

    Front Bumper Fascia Energy Absorber (1) - Install

  5. Install the wiring harness.
  6. GM5408645Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
