Removal Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

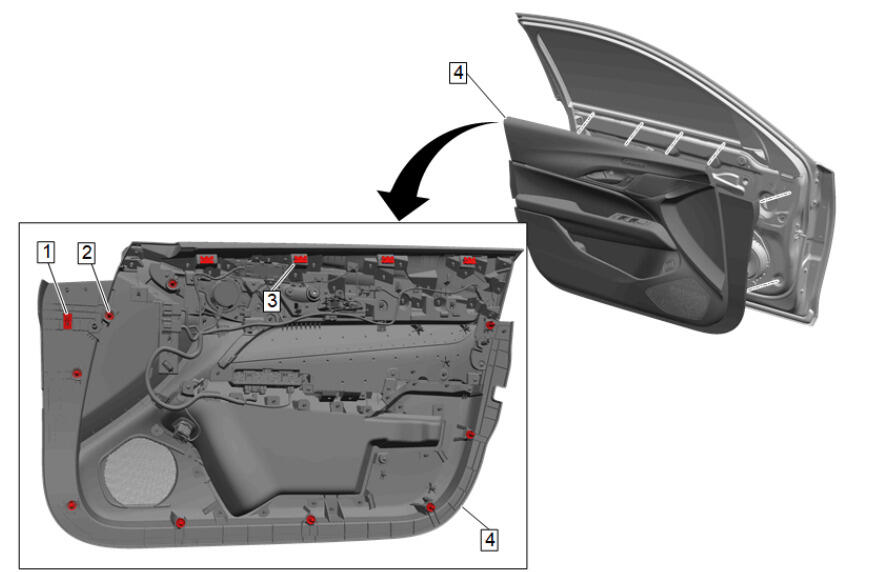

  1. GM5446171Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim(4) - Remove - Front Side Door Trim Removal and Installation

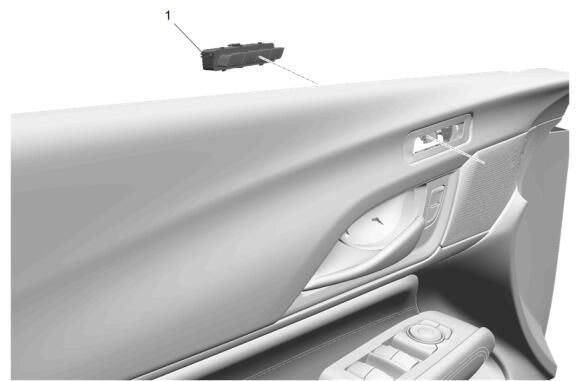

  2. GM5473282Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Use a plastic trim tool to release the front seat adjuster memory switch (1) from the front side door trim.
