Installation Procedure

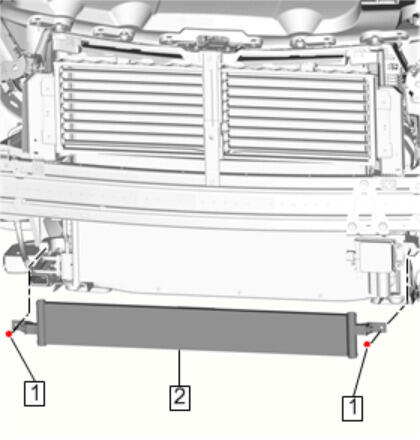

Transmission Fluid Auxiliary Cooler (2) - Install
- Transmission Fluid Auxiliary Cooler Bolt (1) - Install and tighten [ 2x ] 9 N.m (80 lb in)

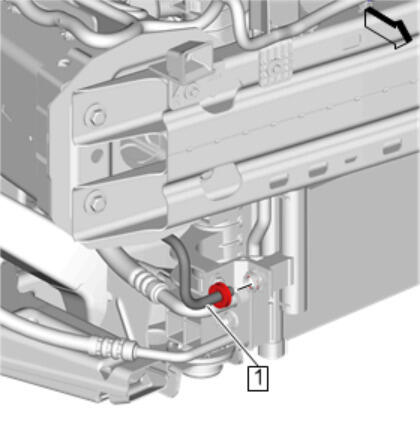

Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Auxiliary Cooler - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

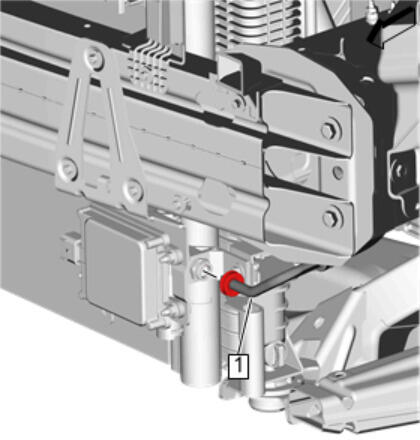

Transmission Fluid Cooler Pipe (1) @ Transmission Fluid Auxiliary Cooler - Connect - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

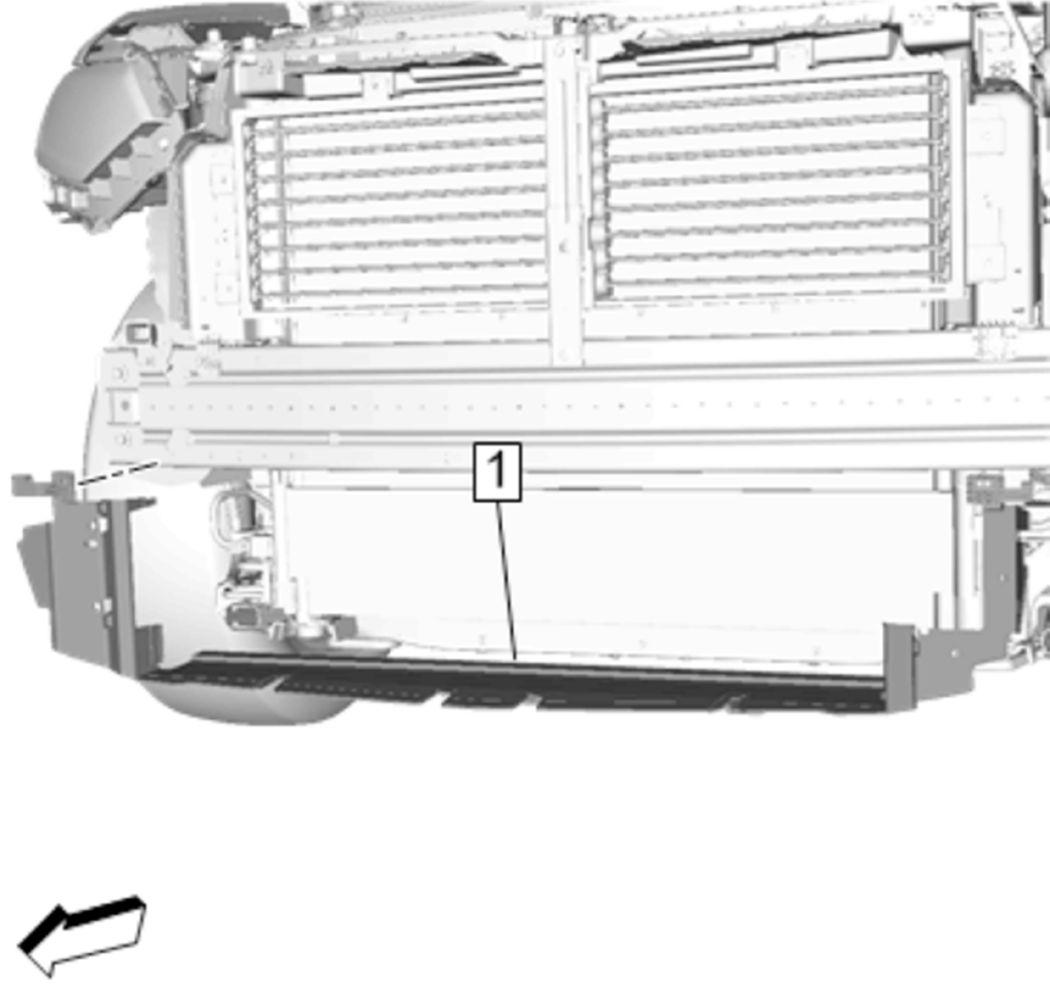

Radiator Air Lower Baffle (1) - Install - Radiator Air Lower Baffle Replacement (with V08) , or Radiator Air Lower Baffle Replacement (without V08)

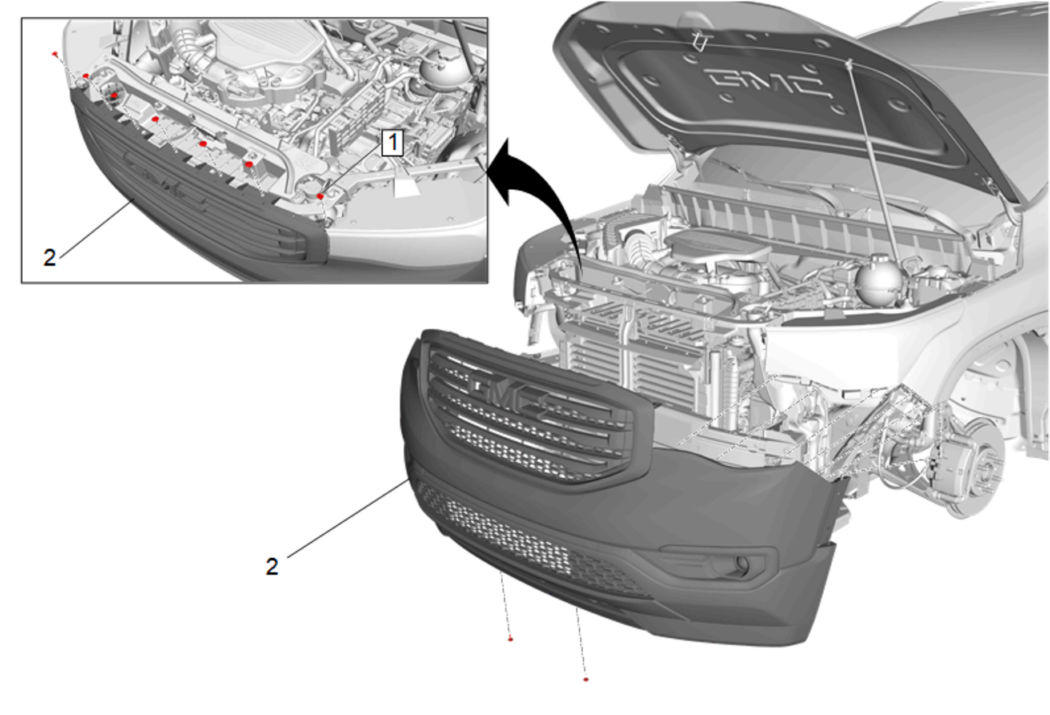

Front Bumper Fascia (2) - Install - Front Bumper Fascia Replacement
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
- Start the engine and inspect for leaks.
CAUTION:
Refer to Fastener Caution .
