Steering Gear Heat Shield Replacement

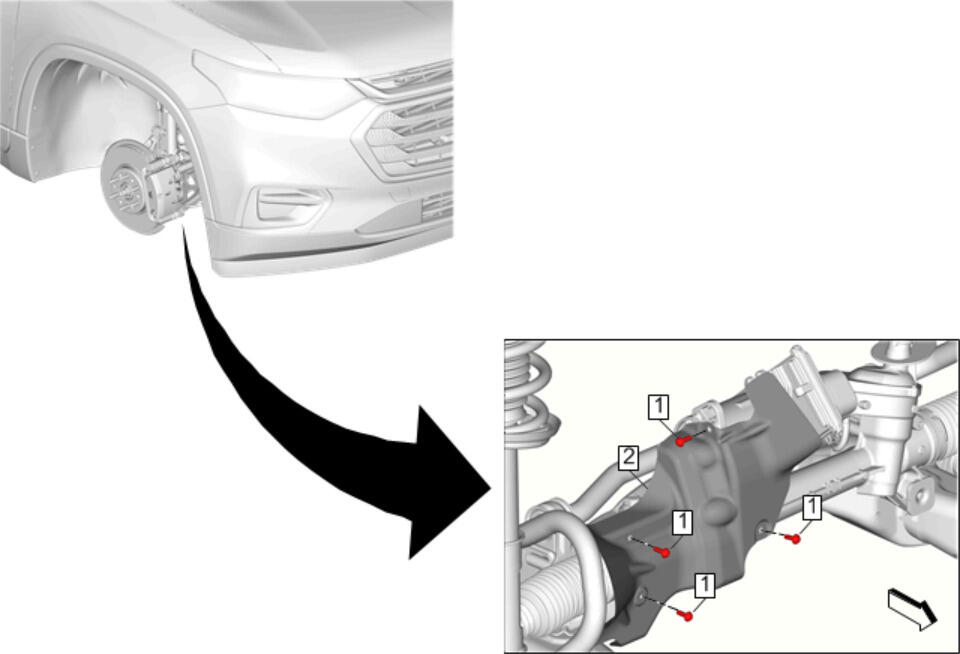

GM4742150Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Warm Up Three-Way Catalytic Converter Replacement (Bank 2) , or Warm Up Three-Way Catalytic Converter Replacement (Bank 1 AWD) , or Warm Up Three-Way Catalytic Converter Replacement (Bank 1 FWD) - Rear
1 Steering Gear Heat Shield Bolt [ 4x ]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Steering Gear Heat Shield
