G104 and G105
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

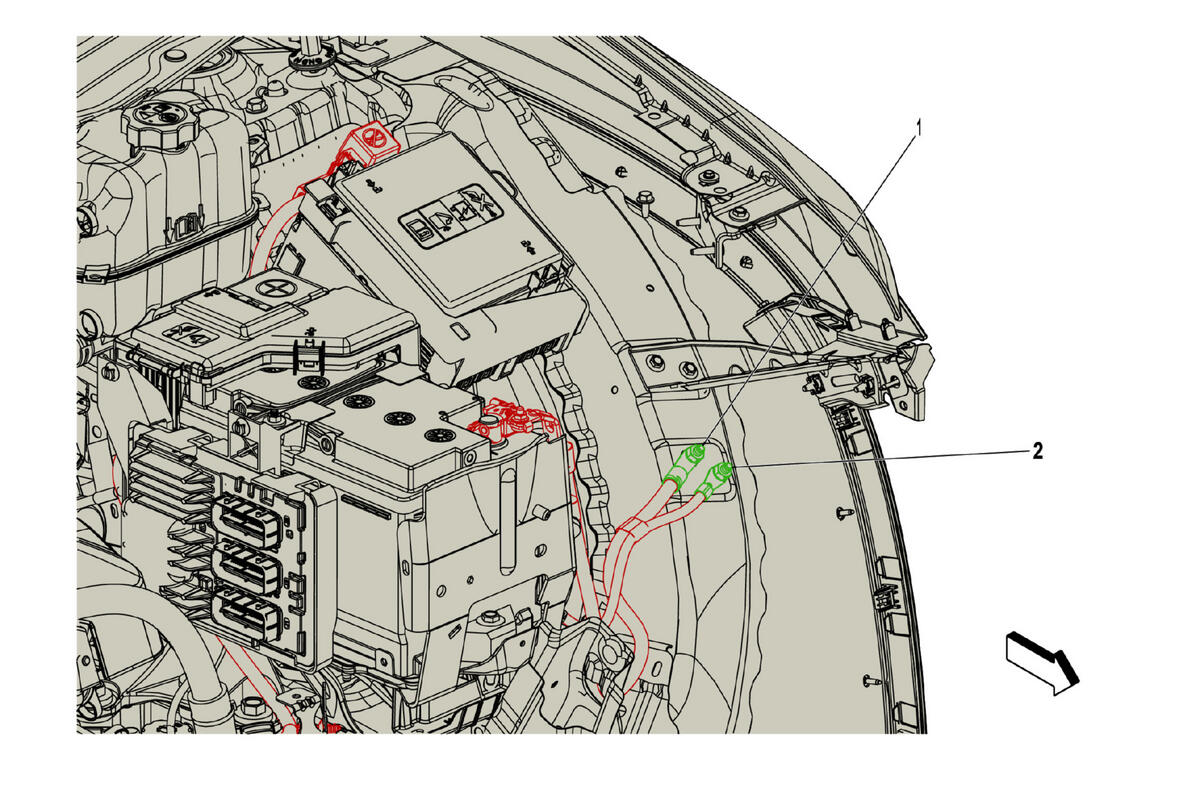

G104 and G105
Courtesy of GENERAL MOTORS COMPANY
G104 and G105
Harness Name
Callout
G105 Battery Harness
1
G104 Battery Harness
2
