S70L Cruise Control Switch
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

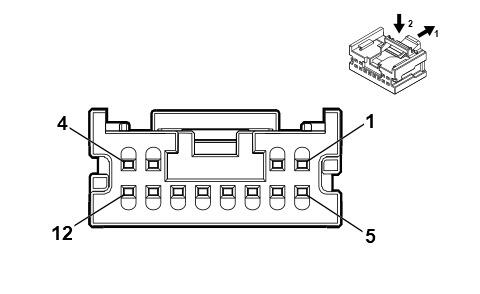

Connector Part Information
- Harness Type:Steering Wheel
- OEM Connector: 13507122
- Service Connector: Service by Harness - See Part Catalog
- Description: 12 -Way F 0.64 Series(GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
- |
YE / BK |
3893 |
Steering Wheel LED Backlight Dimming Control |
I |
- |
| 3 |
- |
BN / GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 4 |
- |
GY / GN |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
BK / WH |
6051 |
Steering Wheel Ground 60 |
I |
- |
| 7 |
- |
BN / WH |
5884 |
Steering Wheel Heating Switch LED Control |
I |
- |
| 8 |
- |
YE / GY |
5883 |
Steering Wheel Heating Switch Signal |
I |
- |
| 9 |
- |
VT |
3892 |
Indicator Dimming Control 2 |
I |
- |
| 10 |
- |
BK / VT |
1449 |
Steering Wheel Resistor Ladder Low Reference |
I |
- |
| 11 |
- |
VT / WH |
2505 |
Communication Voice Switch Signal |
I |
- |
| 12 |
- |
GN / GY |
2504 |
Communication Hang Up Switch Signal |
I |
- |
