B150 Fuel Tank Pressure Sensor
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

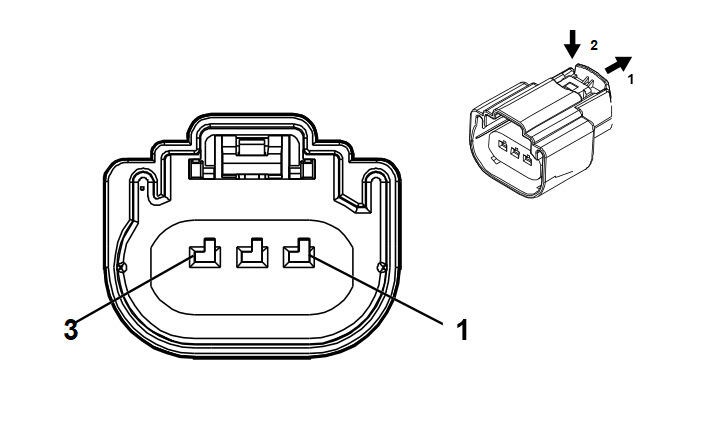

Connector Part Information
- Harness Type:Fuel Tank
- OEM Connector: 160073-3106
- Service Connector: Service by Harness - See Part Catalog
- Description: 3 -Way F 150 MX Series, Sealed(GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
Not Available |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BU / WH |
890 |
Fuel Tank Pressure Sensor Signal |
I |
- |
| 2 |
- |
BK / BN |
6284 |
Fuel Tank Pressure Sensor Low Reference |
I |
- |
| 3 |
- |
YE / RD |
2709 |
Fuel Tank Pressure Sensor 5V Reference |
I |
- |
