B20 Brake Fluid Level Sensor
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

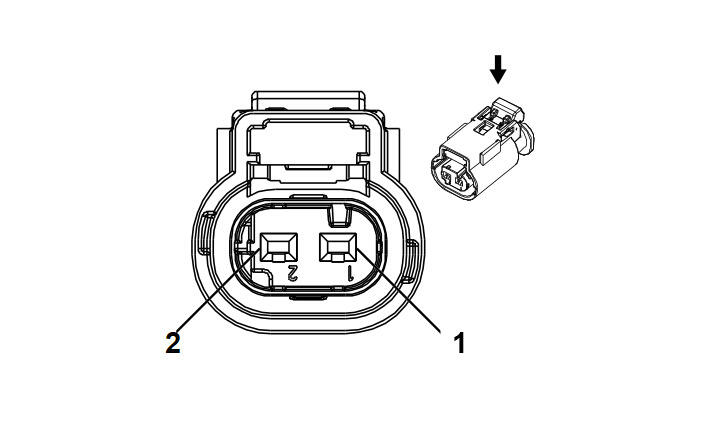

Connector Part Information
- Harness Type:Forward Lamp
- OEM Connector: 13735326
- Service Connector: 13587326
- Description: 2 -Way F 1.2 Multilock Series, Sealed(BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN / GY |
333 |
Brake Fluid Level Signal |
I |
- |
| 2 |
0.5 |
BK |
750 |
Ground |
I |
- |
