Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.

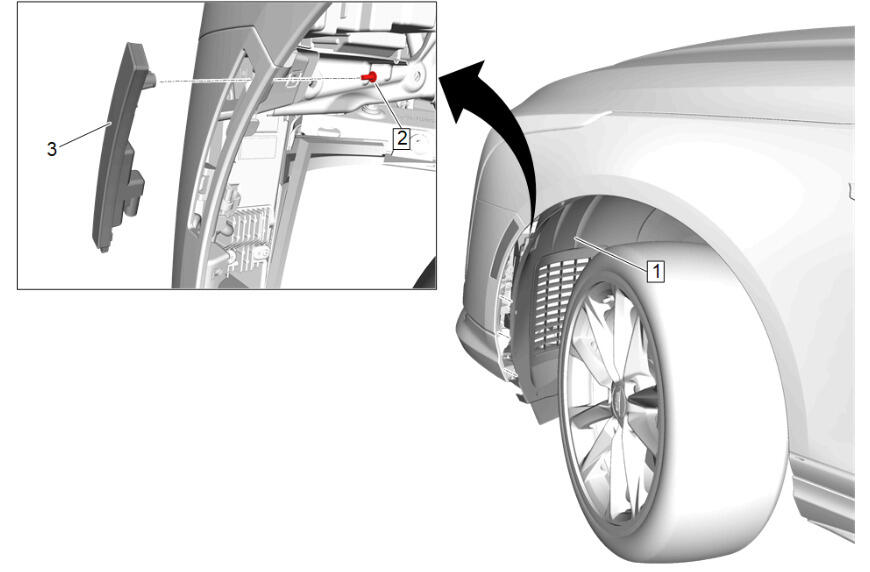

- Front Side Marker Lamp (3) - Install
- Front Side Marker Lamp Screw (2) - Install and tighten - Fastener Specifications
- Front Wheelhouse Liner (1) - Install

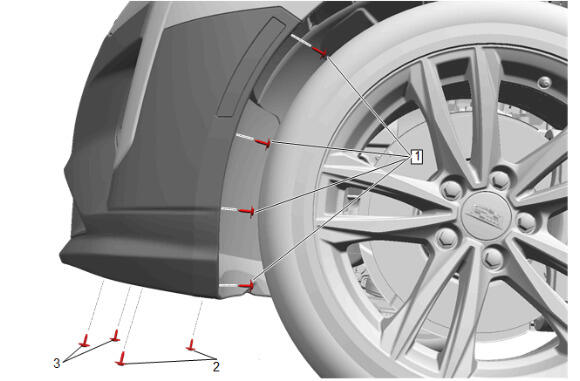

Front Bumper Fascia Bolt (3) - Install and tighten [2x] - Fastener Specifications
- Front Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Front Wheelhouse Liner Bolt (1) - Install and tighten [4x] - Fastener Specifications
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
