Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

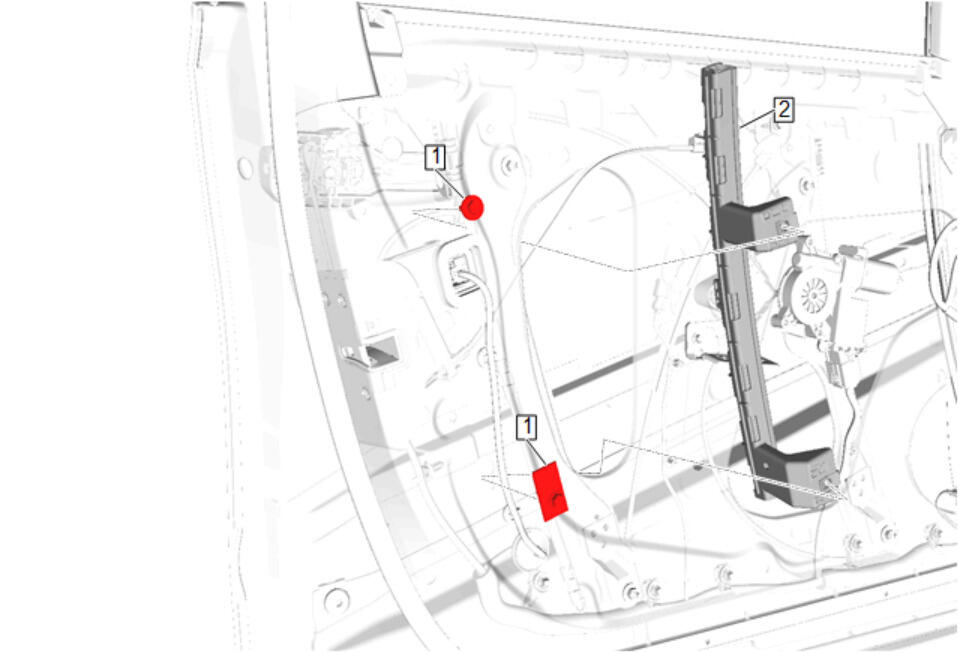

Front Side Door Window Channel Retainer (2) - Install
- Front Side Door Window Channel Retainer Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
- Install the wiring harness to the front side door window channel retainer (2).
- NOTE:
When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
Route front side door inside handle cable through hole in deflector.
- Front Side Door Water Deflector (1) - Install
- Front Side Door Trim - Install - Front Side Door Trim Removal and Installation
- Supplemental Inflatable Restraint System Description and Operation
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
