Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

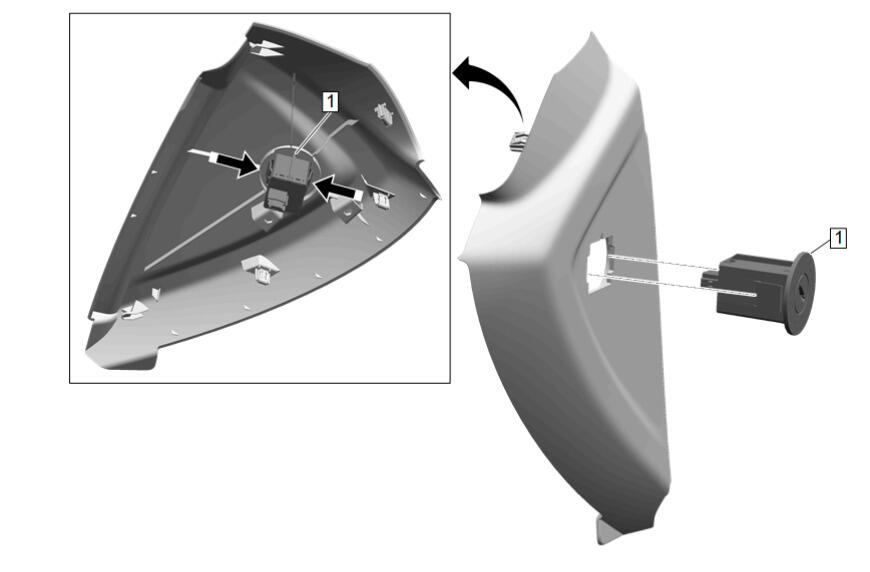

  1. GM5445386Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Instrument Panel Airbag Disable Switch (1) - Install
  3. GM5421737Courtesy of GENERAL MOTORS COMPANY
  4. Instrument Panel Outer Trim Cover - Right Side (1) - Install
  5. Enable the SIR System. SIR Disabling and Enabling
