Removal Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
- NOTE:
- Quantity of fasteners may vary based on option content
- Some components not shown for graphic clarity.
Engine Front Splash Shield Retainer (2) - Remove [ 2x ]
- Engine Front Splash Shield Bolt (1) - Remove [ 5x ]
- Engine Front Splash Shield (3) - Remove

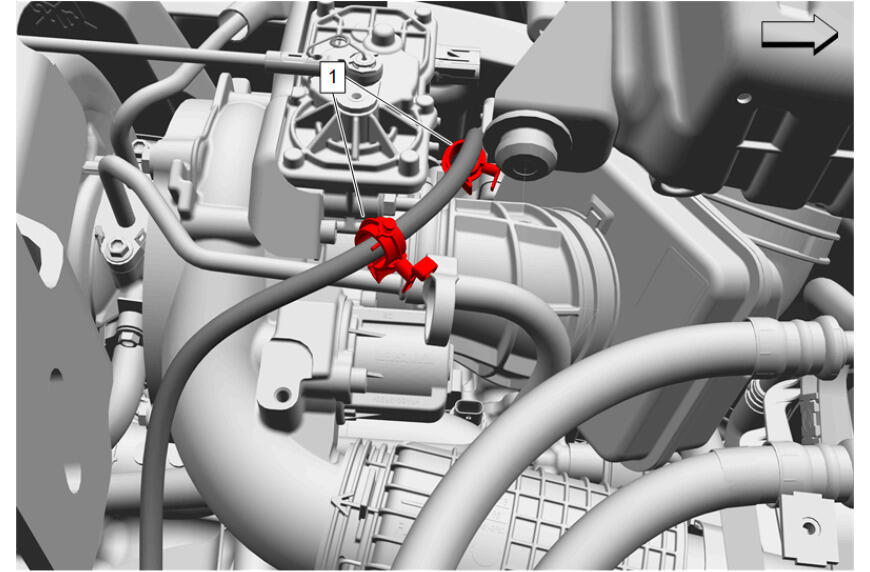

Transmission Fluid Cooler Pipe Clip (1) - Release [ 2x ]
Front Axle Vent Hose (1) - Remove
