Center Console Components
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

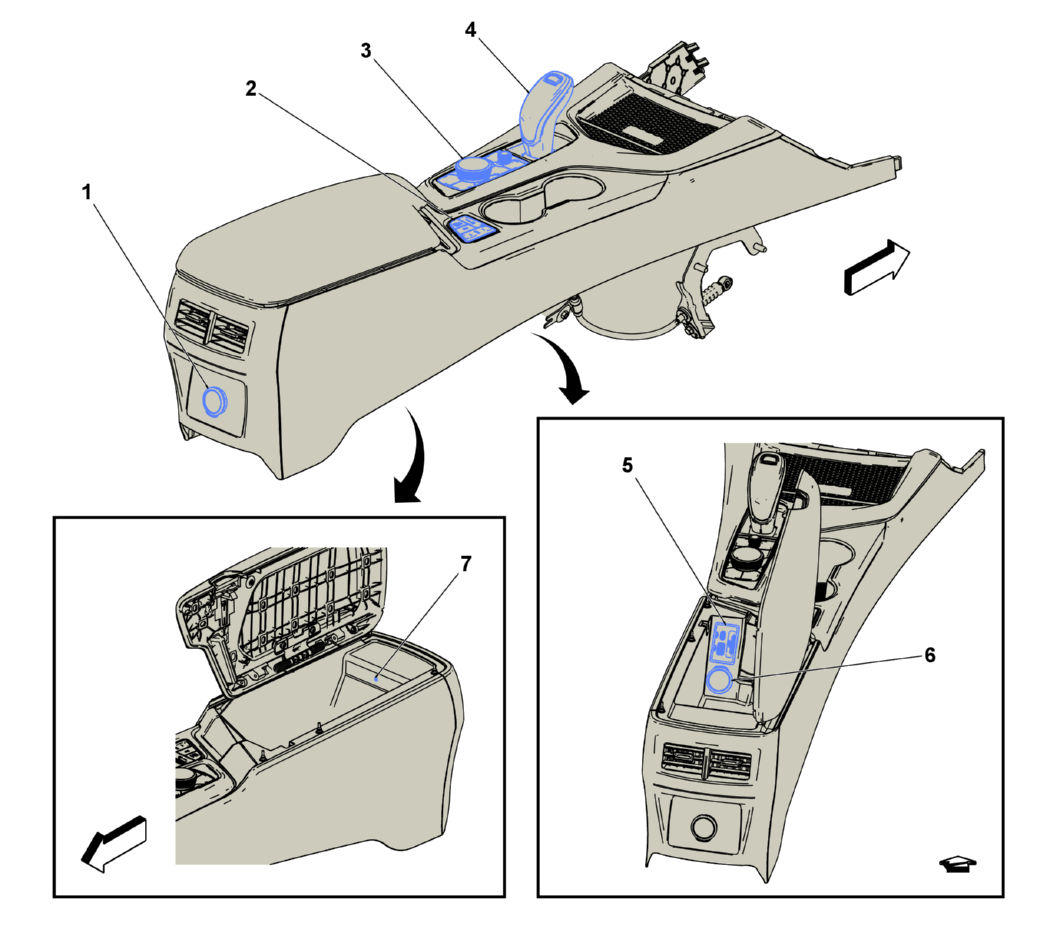

Callouts in the following chart represent components shown in graphic above.
Center Console Components
| Component Name | Callout |
|---|---|
| X80L Front Floor Console Accessory Power Rear Receptacle X80L Front Floor Console Accessory Power Rear Receptacle | 1 |
| S86 Vehicle Stability Control System Switch S86 Vehicle Stability Control System Switch | 2 |
| S165 Infotainment Control Switch S165 Infotainment Control Switch | 3 |
| K212 Gear Shift Control Module K212 Gear Shift Control Module | 4 |
| X23 Multimedia Receptacle X23 Multimedia Receptacle X1 | 5 |
| X80D Accessory Power Receptacle - Floor Console Compartment X80D Accessory Power Receptacle - Floor Console Compartment | 6 |
| E28 Front Floor Console Compartment Lamp E28 Front Floor Console Compartment Lamp | 7 |
