Bottom of Instrument Panel Components
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

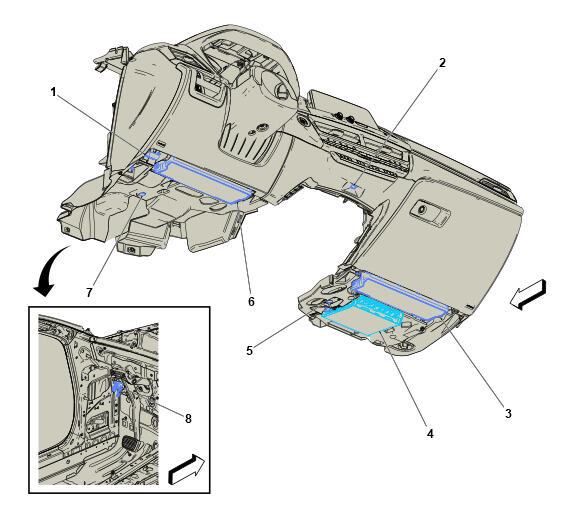

Callouts in the following chart represent components shown in graphic above.
Bottom of Instrument Panel Components
| Component Name | Callout |
|---|---|
| X84 Data Link Connector X84 Data Link Connector | 1 |
| E1W Instrument Panel Light Conductor Lamp E1W Instrument Panel Light Conductor Lamp | 2 |
| F114P Instrument Panel Lower Airbag - Passenger F114P Instrument Panel Lower Airbag - Passenger | 3 |
| K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8 | 4 |
| E8VC Front Floor Courtesy Lamp - Right E8VC Front Floor Courtesy Lamp - Right | 5 |
| F114D Instrument Panel Lower Airbag - Driver F114D Instrument Panel Lower Airbag - Driver | 6 |
| E8VA Front Floor Courtesy Lamp - Left E8VA Front Floor Courtesy Lamp - Left | 7 |
| B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor | 8 |
