Engine Controls And Fuel - 3.6L (LFY) - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>
Monitored/Controlled Subsystem References
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

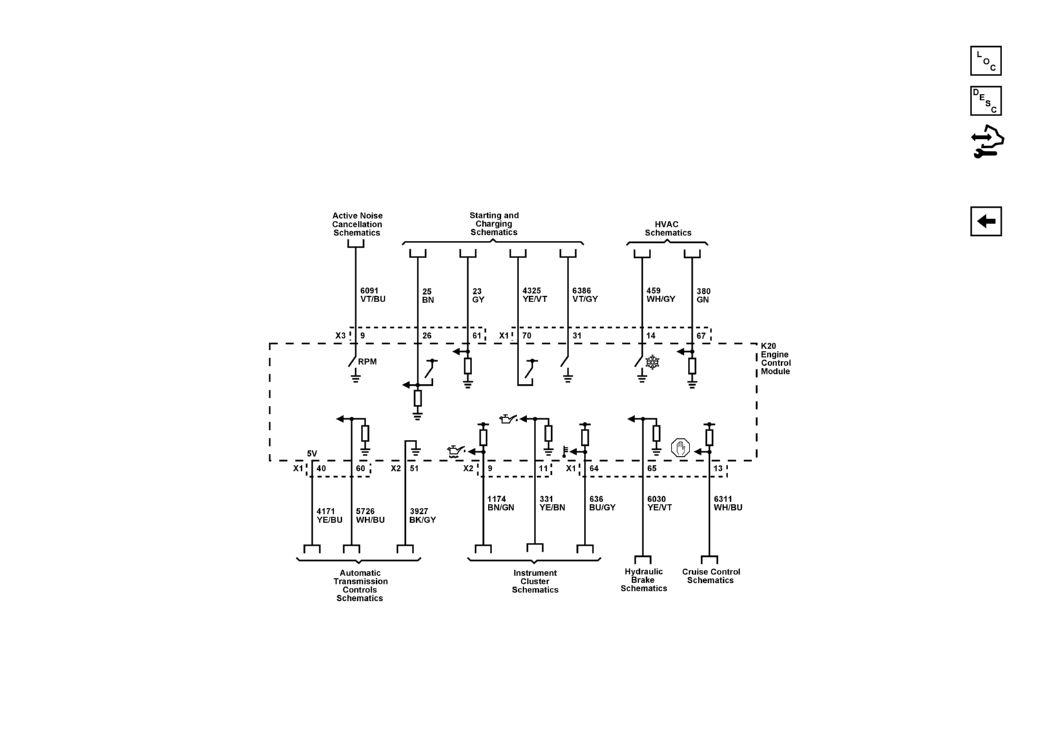

Monitored/Controlled Subsystem References
Courtesy of GENERAL MOTORS COMPANY
