Inspection Procedure

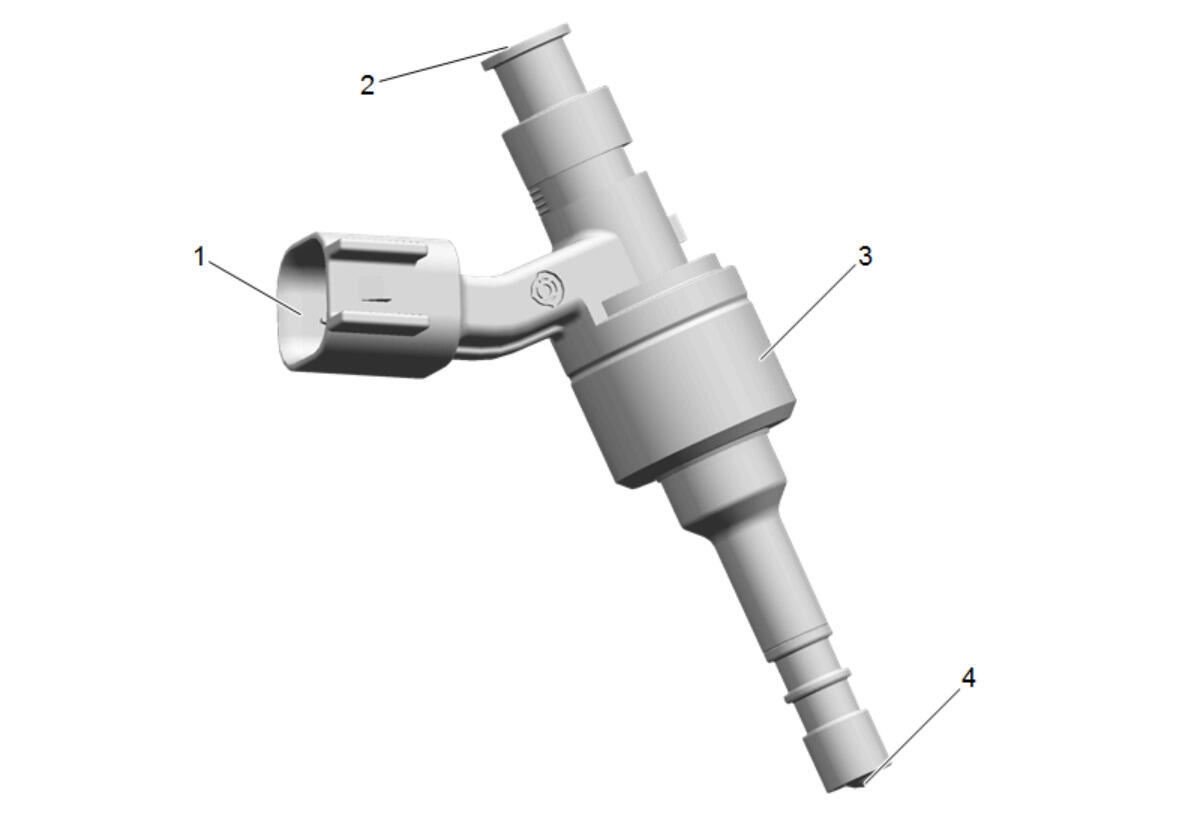

  1. GM2202046Courtesy of GENERAL MOTORS COMPANY

    Inspect the fuel injectors for the following conditions:

    • Damage to the fuel injector connector (1)
    • Damage to the fuel inlet cone (2)
    • Damage to the fuel injector body (3)
    • Damage to the fuel injector tip (4)
  2. Replace the fuel rail or injector if any damage is found. Do not attempt to repair a fuel rail or injector.
