Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

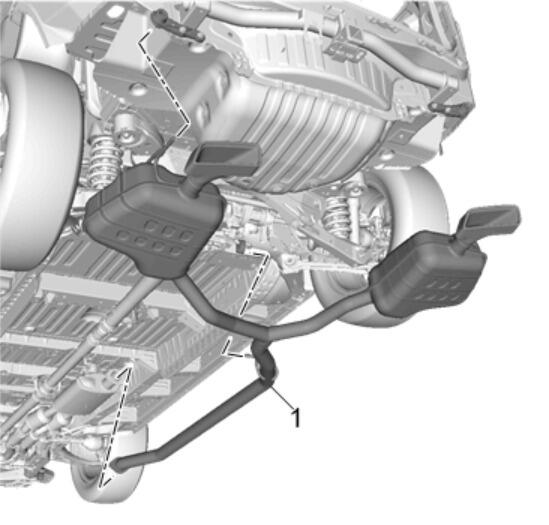

With the aid of an assistant, install the exhaust muffler (1) to the vehicle.
Courtesy of GENERAL MOTORS COMPANY

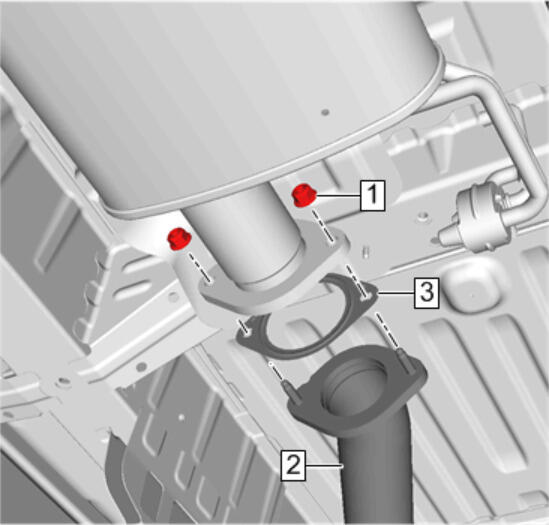

NOTE:
Install NEW gaskets.

Exhaust Gasket (3) - Install
Exhaust Muffler (2) - Connect

CAUTION:

Refer to Fastener Caution .

Exhaust Muffler Flange Nut (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)
Lower the vehicle. Lifting and Jacking the Vehicle
