Installation Procedure

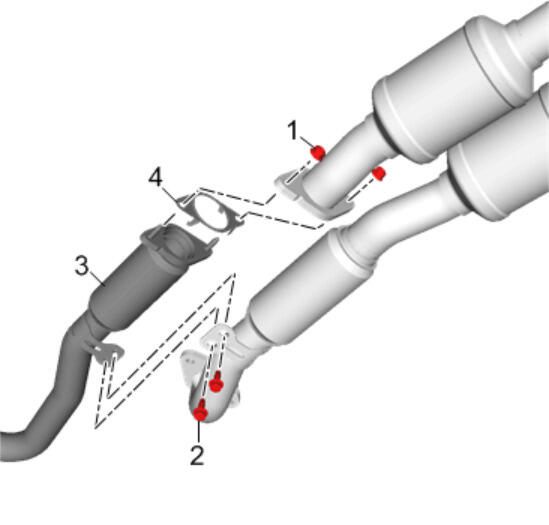

  1. GM4751474Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install NEW gaskets.

    Exhaust Front Pipe Gasket (4) - Install

  2. Exhaust Front Pipe (3) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Exhaust Front Pipe Bracket Bolt (2) - Install and hand tighten [ 2x ]
  4. Exhaust Front Pipe Nut (1) - Install and tighten [ 2x ] 22 N.m (16 lb ft)
  5. Exhaust Front Pipe Bracket Bolt (2) - Tighten [ 2x ] 22 N.m (16 lb ft)

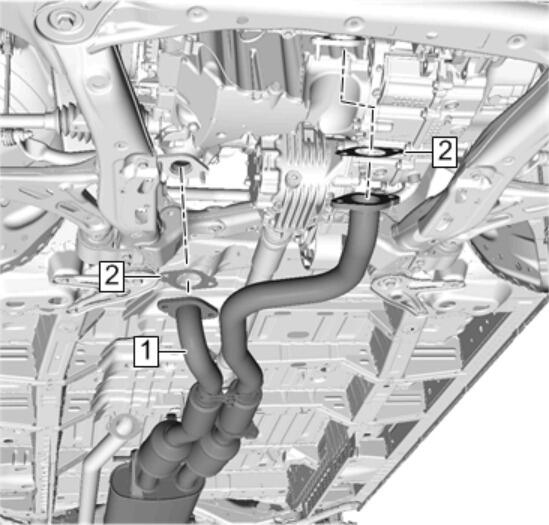

  6. GM4751671Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Muffler (1) - Install - Exhaust Front Muffler Replacement (LFY)
