Front Floor Console Front Cover Replacement

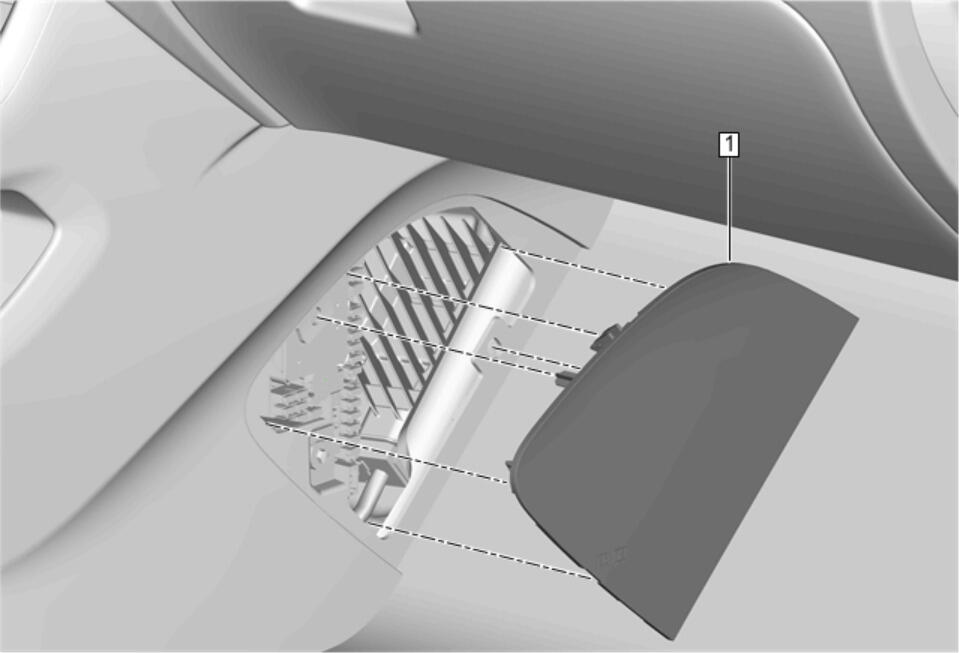

GM4749773Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Front Cover

Procedure

  1. Use a plastic trim tool if necessary.
  2. Start at the bottom and work your way around to release the tabs.
