Steering Components

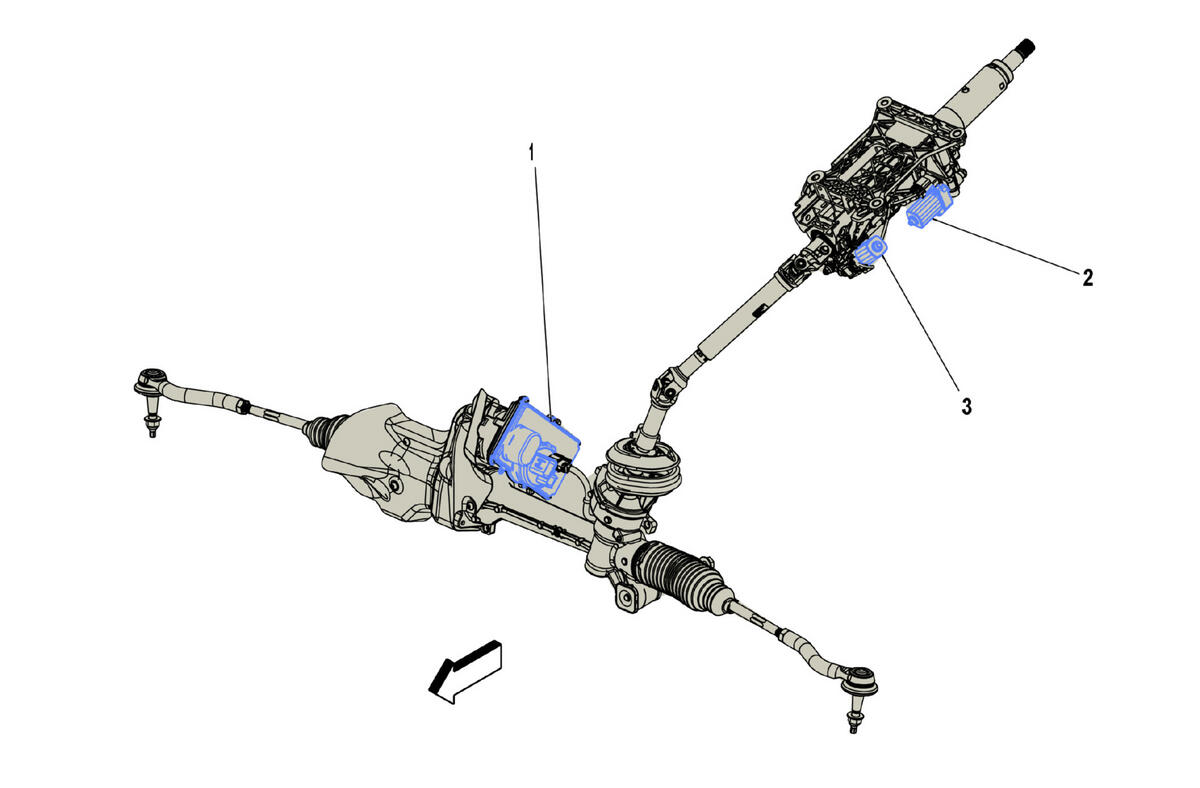

GM5701922Courtesy of GENERAL MOTORS COMPANY
Steering Components

Component Name Callout
K43 Power Steering Control Module K43 Power Steering Control Module X1 , or K43 Power Steering Control Module X2 , or K43 Power Steering Control Module X3 1
M65 Steering Column Telescope Motor (N38) M65 Steering Column Telescope Motor (N38) 2
M68 Steering Column Tilt Motor (N38) M68 Steering Column Tilt Motor (N38) 3
