Behind the Instrument Panel Components (IOR)
 Courtesy of GENERAL MOTORS COMPANY
|

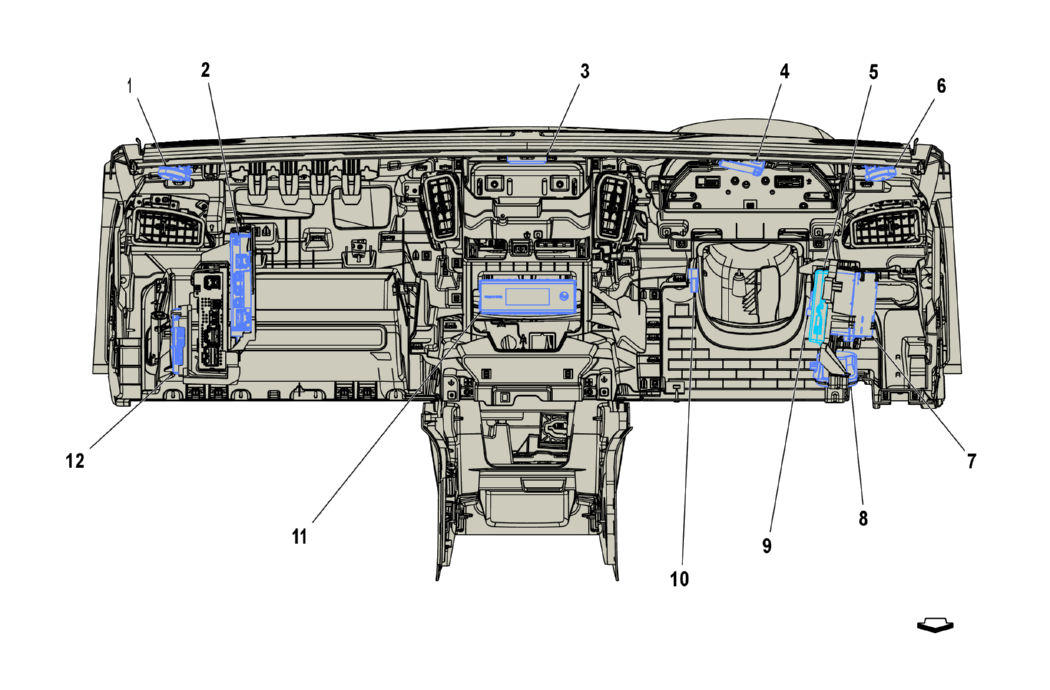

Behind the Instrument Panel Components (IOR)
| Component Name |
Callout |
| P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)
, or P19W Speaker - Right Instrument Panel (UQF) |
1 |
| K74 Human Machine Interface Control Module |
2 |
| P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA) |
3 |
| P16 Instrument Cluster P16 Instrument Cluster (UDC)
, or P16 Instrument Cluster (UDD/UHS) |
4 |
| C3 Telematics Communication Interface Control Module Battery |
5 |
| P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)
, or P19J Speaker - Left Instrument Panel (UQF) |
6 |
| K73 Telematics Communication Interface Control Module (UE1 or UI3) K73 Telematics Communication Interface Control Module X1 (UE1/UI3)
, or K73 Telematics Communication Interface Control Module X5 (UE1/UI3)
, or K73 Telematics Communication Interface Control Module X7 (UE1/UI3) |
7 |
| P50 Emergency Call Backup Speaker (UI3) P50 Emergency Call Backup Speaker (UE1/UI3) |
8 |
| K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1
, or K56 Serial Data Gateway Module X2 |
9 |
| P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU) |
10 |
| A11 Radio A11 Radio X1 (IOR)
, or A11 Radio X10
, or A11 Radio X2 (IOR)
, or A11 Radio X2 (IOS/IOU)
, or A11 Radio X2 (UQF+ (IOS/IOU))
, or A11 Radio X3 (IOR+ (UE1/UER))
, or A11 Radio X3 (IOS/IOU)
, or A11 Radio X4 (IOR)
, or A11 Radio X4 (IOS/IOU)
, or A11 Radio X5 (IOR+ (UVB/UV2))
, or A11 Radio X5 (UVB/UV2)
, or A11 Radio X6 (IOS/IOU)
, or A11 Radio X7 (IOR+U2K)
, or A11 Radio X8 (IOR)
, or A11 Radio X9 ((IOS/IOT)+U2K) |
11 |
| K188 Human Machine Interface Control Module Bypass Module |
12 |
