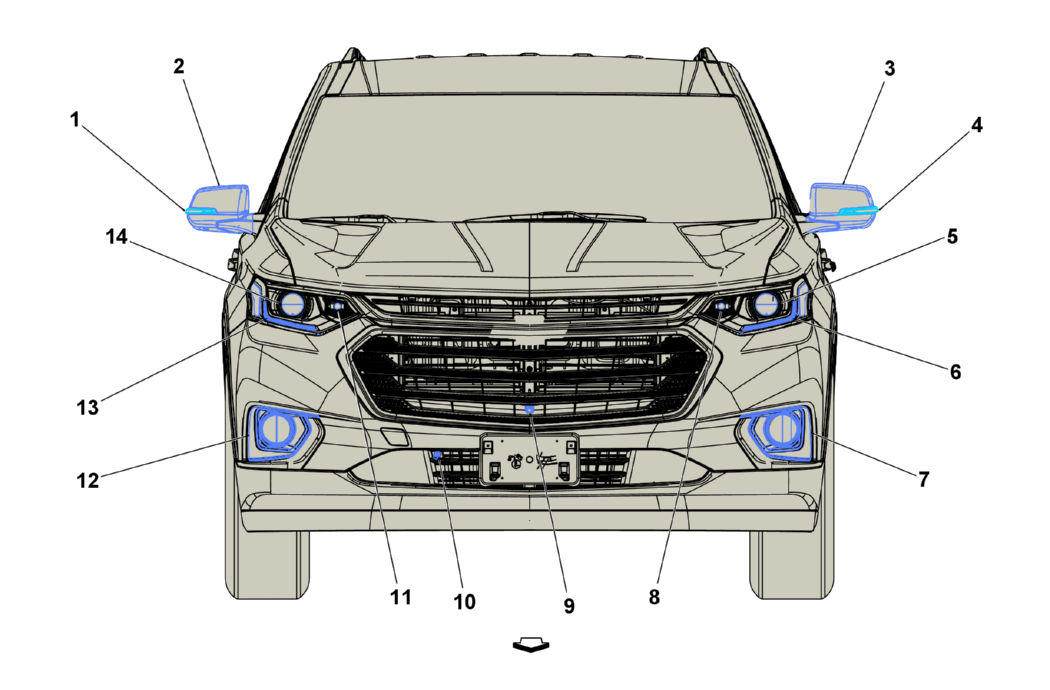

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4Z Turn Signal Repeater Lamp - Right (DNP) | 1 |
| A9B Outside Rearview Mirror - Passenger | 2 |
| A9A Outside Rearview Mirror - Driver | 3 |
| E4Y Turn Signal Repeater Lamp - Left (DNP) | 4 |
| E4G Headlamp - Left Low Beam | 5 |
| E4AC Park/Daytime Running Lamp - Left | 6 |
| E29LF Fog Lamp - Left Front | 7 |
| E4LF Turn Signal Lamp - Left Front | 8 |
| B174G Frontview Camera - Grille (UV2) B174G Frontview Camera - Grille (UV2+T4L+Y5G) , or B174G Frontview Camera - Grille (UV2+T4L-Y5G) , or B174G Frontview Camera - Grille (UV2-T4L/Y5G) | 9 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 10 |
| E4RF Turn Signal Lamp - Right Front | 11 |
| E29RF Fog Lamp - Right Front | 12 |
| E4AD Park/Daytime Running Lamp - Right | 13 |
| E4H Headlamp - Right Low Beam | 14 |
