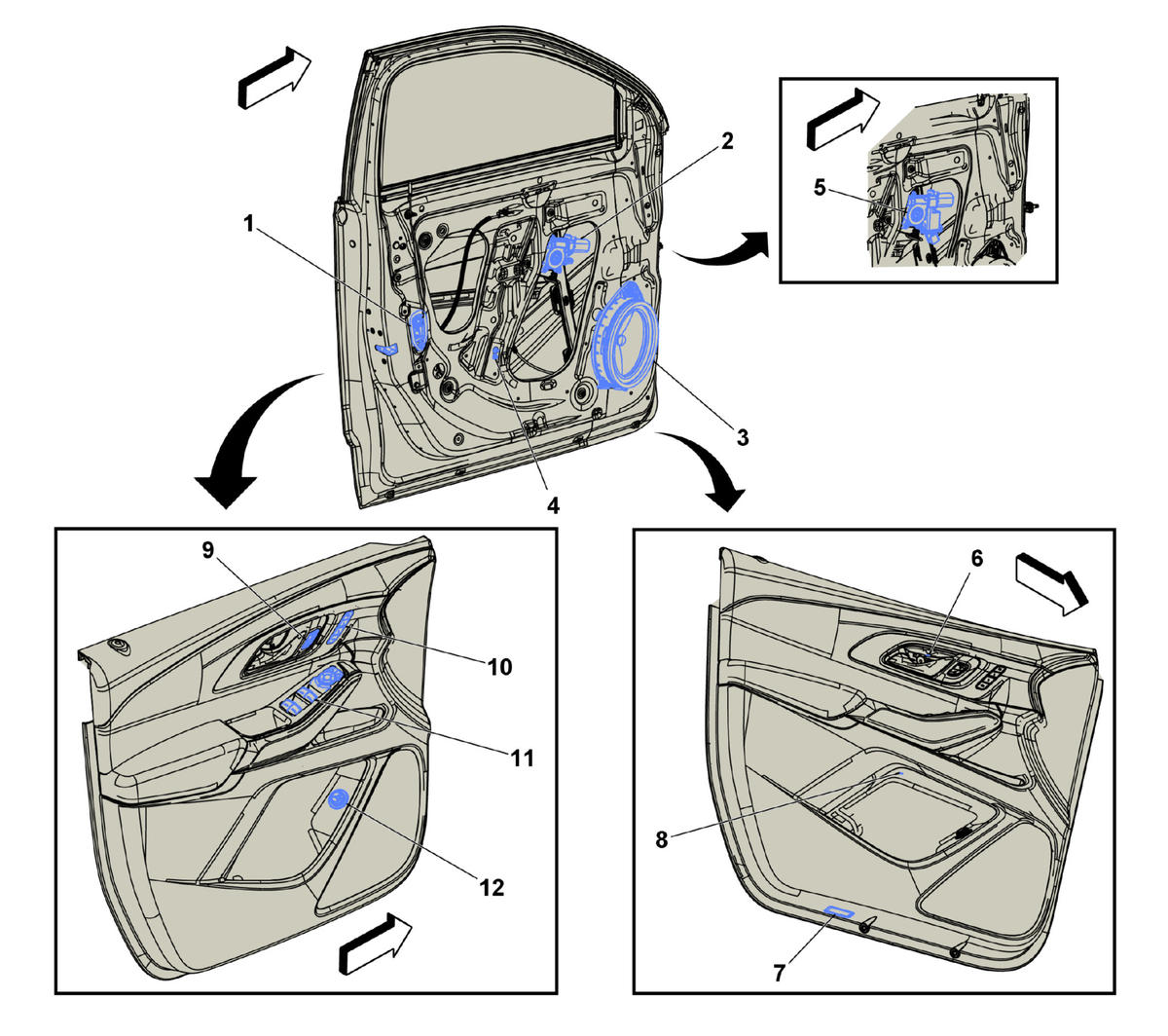

Left Front Door Components
Left Front Door Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 1 |
| M74D Window Motor - Driver M74D Window Motor - Driver (-DR9) | 2 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA) , or P19AG Speaker - Left Front Door (UQF) | 3 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 4 |
| M35D Window Motor Module - Driver (Without DR9) M35D Window Motor Module - Driver (DR9) | 5 |
| E63D Flood Lamp - Driver Door Handle E63D Flood Lamp - Driver Door Handle | 6 |
| E8D Door Courtesy Lamp - Driver E8D Door Courtesy Lamp - Driver | 7 |
| E55D Flood Lamp - Driver Door Pocket (1LZ or 2LZ) | 8 |
| S13D Door Lock Switch - Driver S13D Door Lock Switch - Driver | 9 |
| S47D Seat Memory Switch - Driver (AAB) S47D Seat Memory Switch - Driver (AAB) | 10 |
| S79D Window Switch - Driver S79D Window Switch - Driver | 11 |
| S45B Liftgate Control Switch - Interior (TB5 or TC2) S45B Liftgate Control Switch - Interior | 12 |
