Power Distributor Fuse Block Cover Replacement
 Courtesy of GENERAL MOTORS COMPANY
|

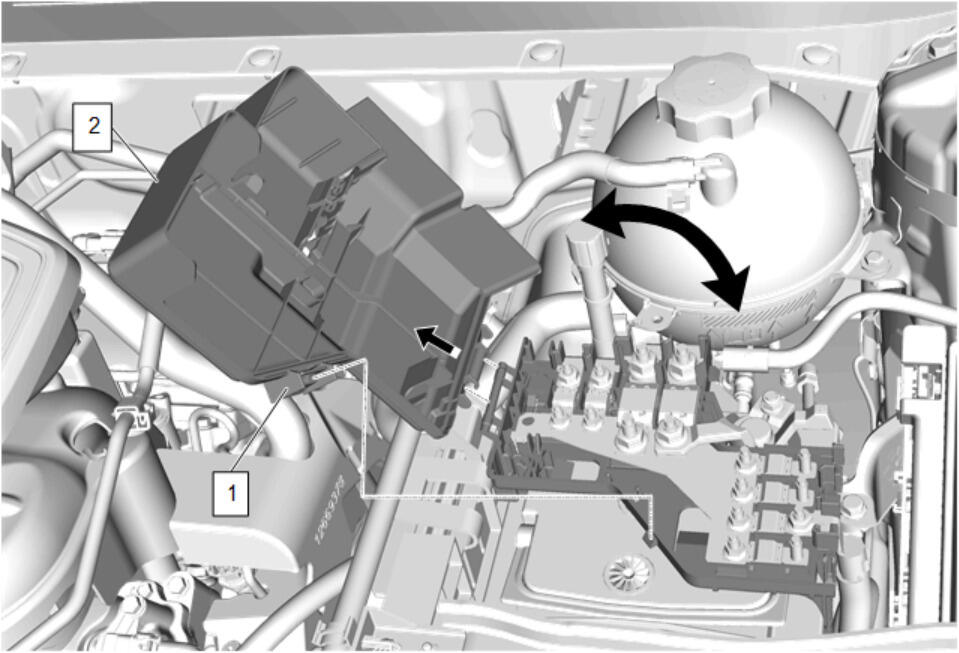

| Callout |
Component Name |
| 1 |
Retaining Tab |
| 2 |
Power Distributor Fuse Block Cover Procedure
- Disengage the retaining tab (1) and swing open the power distributor fuse block cover.
- Disengage the power distributor fuse block cover (2) from the power distribution fuse block.
|
