Installation Procedure

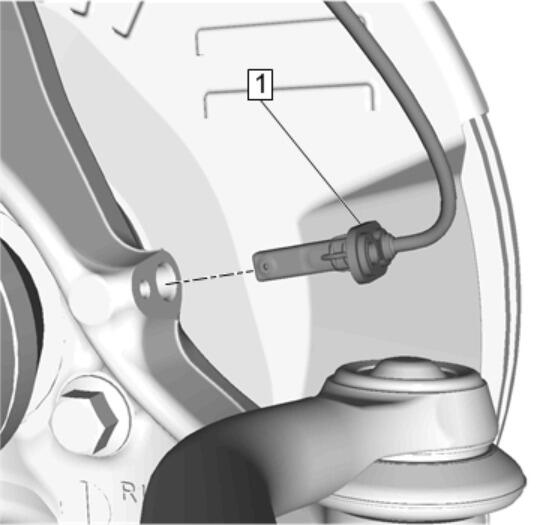

  1. GM4353813Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor (1) - Install

  2. GM4353811Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Wheel Speed Sensor Bolt (1) - Install and tighten 9 N.m (80 lb in)

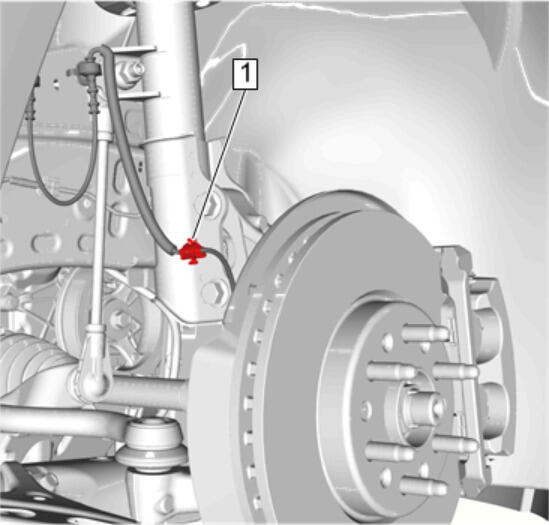

  3. GM4774048Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Strut Assembly - Secure

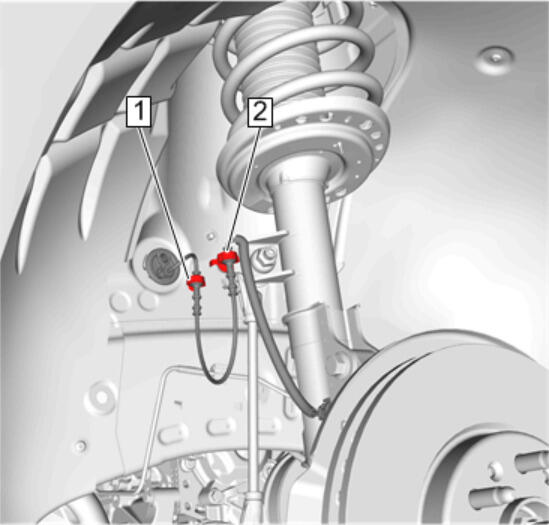

  4. GM4774045Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Wheelhouse - Secure

  5. Retainer (2) @ Strut Assembly - Secure

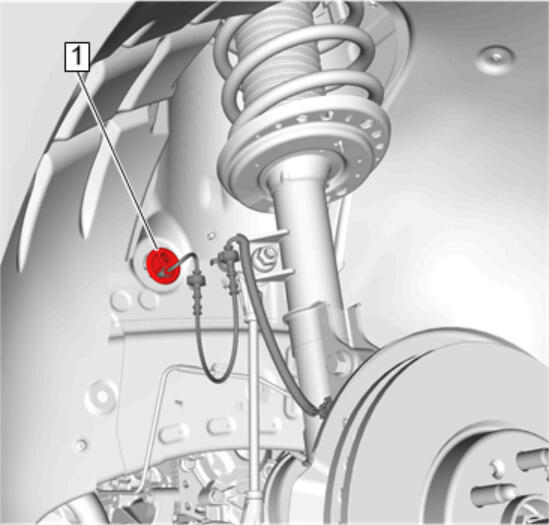

  6. GM4774044Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Harness Pass Through Grommet (1) - Secure

  7. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  8. Lower the vehicle.

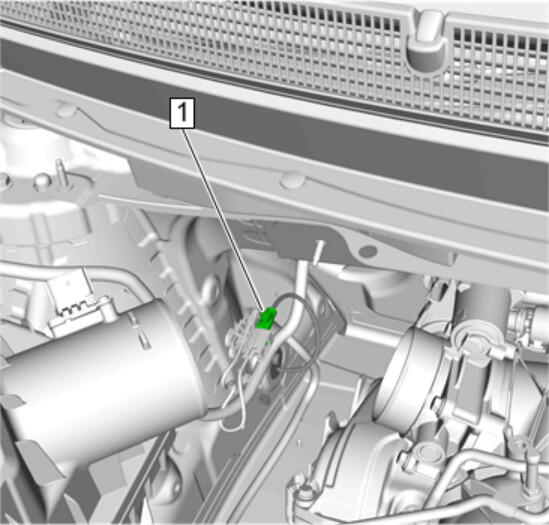

  9. GM4774042Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Electrical Connector (1) - Connect

  10. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
  11. Verify the repair is complete. Diagnostic Repair Verification
