Rear Seat Heater Control Module Replacement

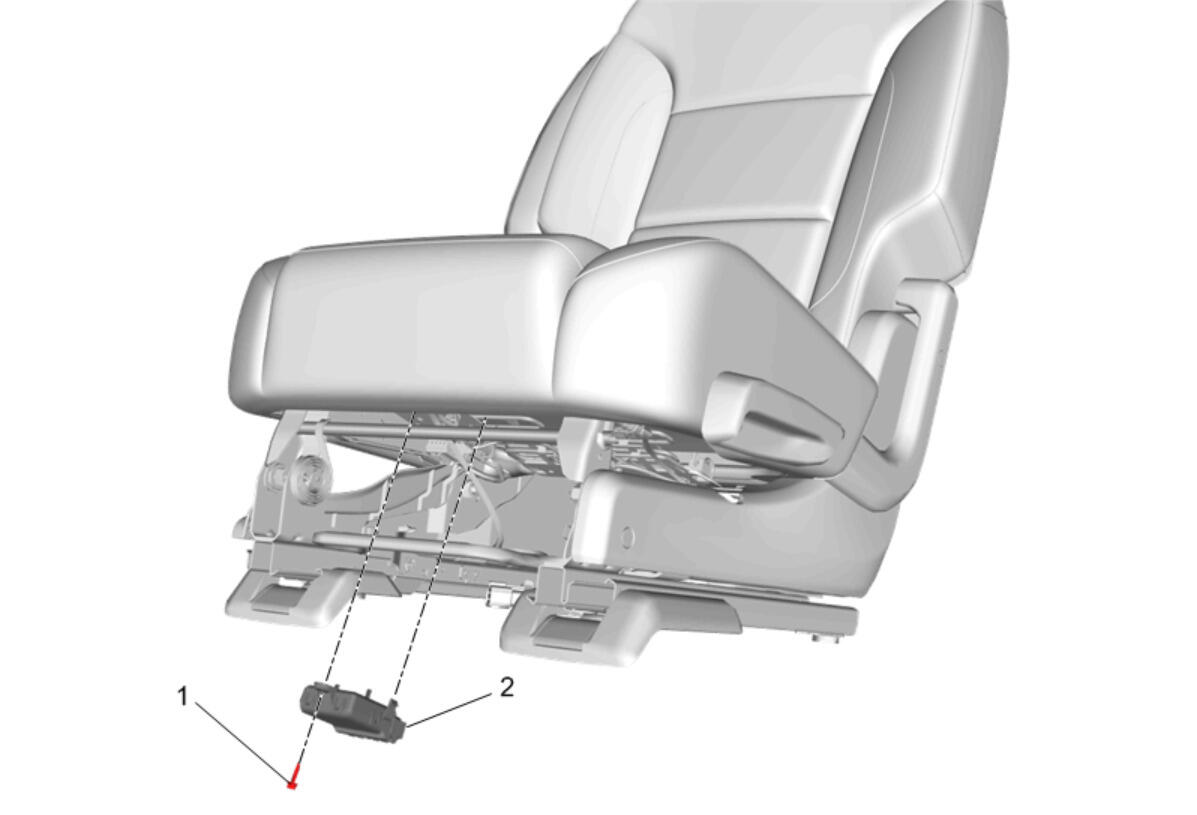

GM4746114Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Removal and Installation (Bucket Seat) , or Rear Seat Removal and Installation (40 Percent Seat) , or Rear Seat Removal and Installation (60 Percent Seat)
1 Rear Seat Heater Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
