Front Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

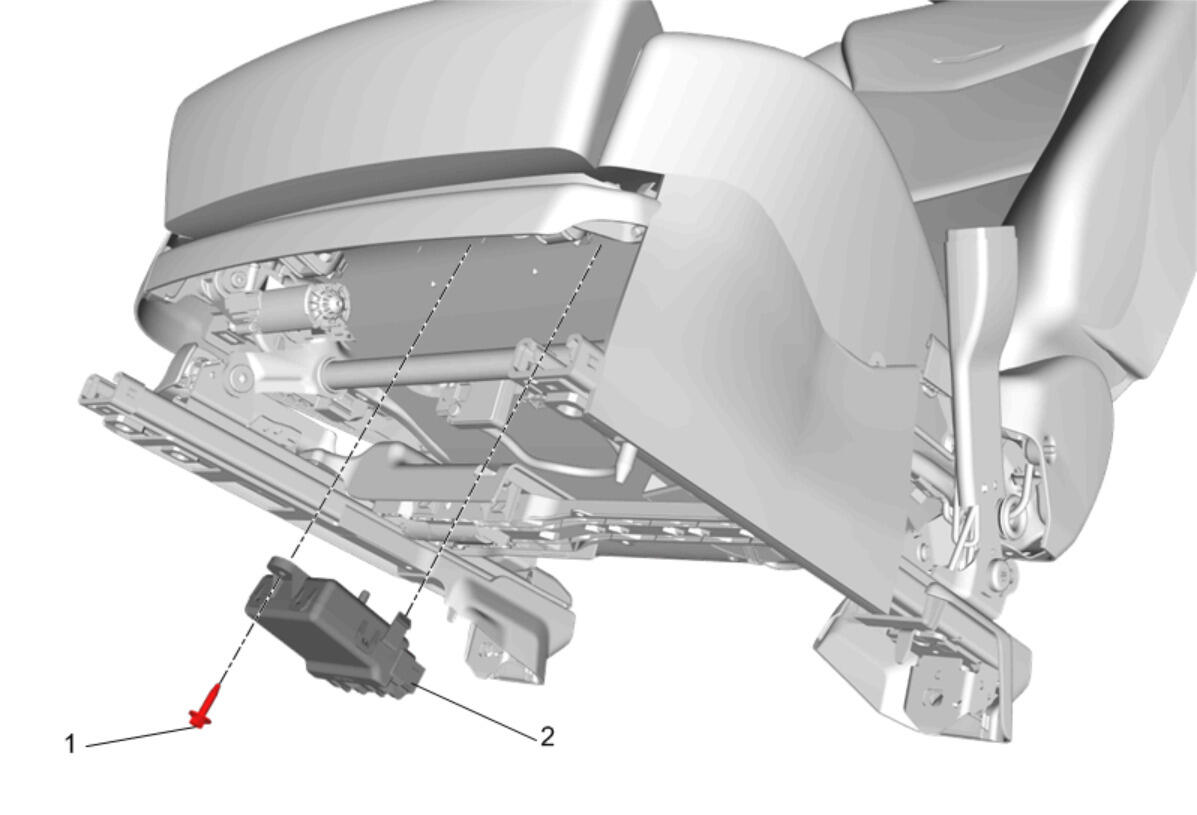

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation - Reposition
1	Front Seat Heater Vent Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Front Seat Removal and Installation - Reposition

Front Seat Heater Vent Control Module Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tabs.
