Folding 3rd Row Seat Module Replacement

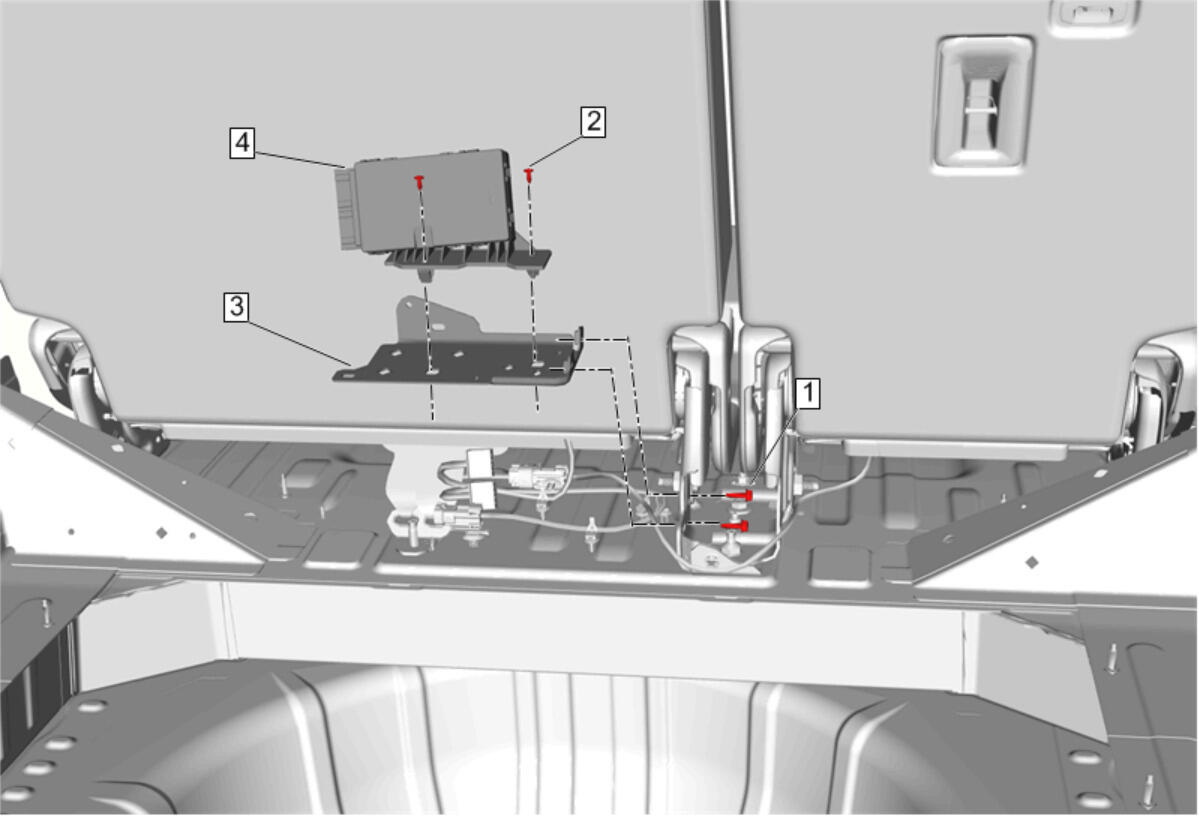

GM4758356Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Folding 3rd Row Seat Bracket Bolt [ 2x ]
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Folding 3rd Row Seat Module Screw [ 2x ]
Tighten
2.5 N.m (22 lb in)
3 Folding 3rd Row Seat Bracket
4 Folding 3rd Row Seat Module

Procedure

  1. Disconnect the electrical connector.
  2. Perform the necessary programming and setup procedure: Control Module References
