Outside Rearview Mirror Replacement

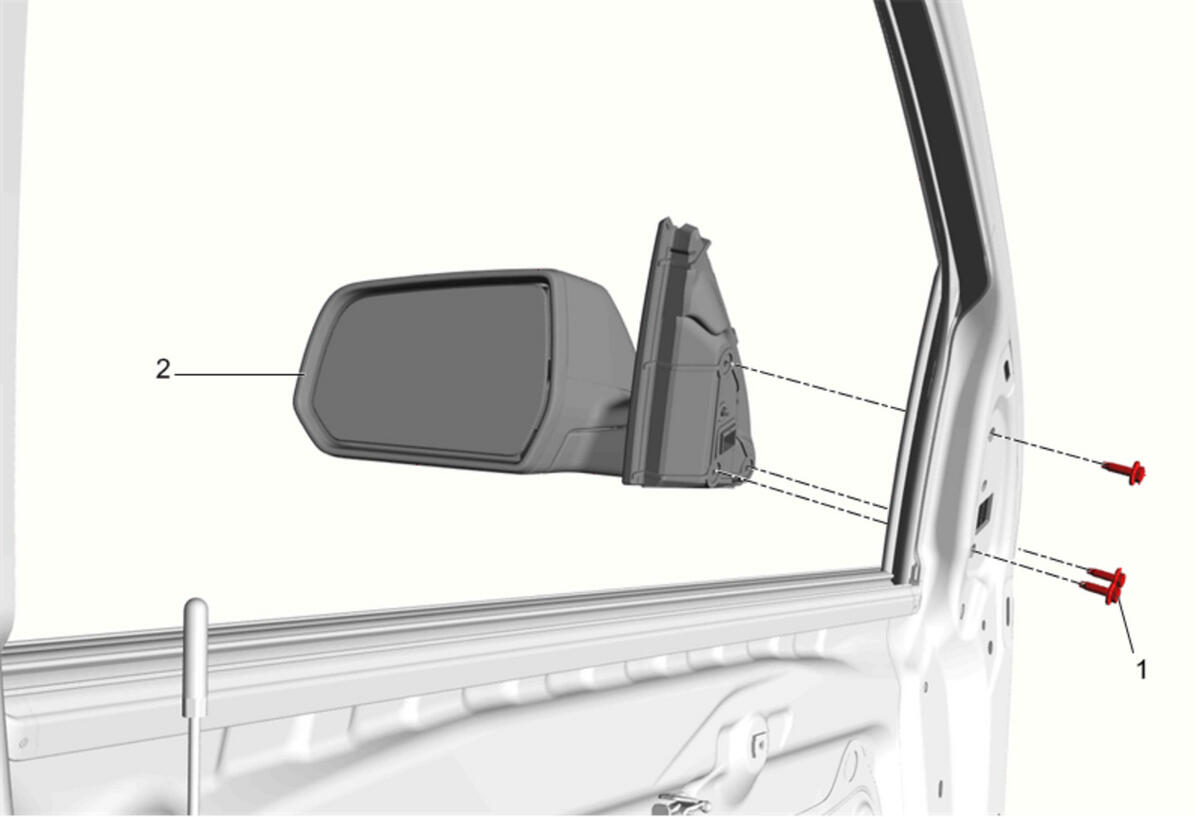

GM4375761Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Glass and Sheet Metal Handling Warning

Preliminary Procedures
  1. Front Side Door Window Garnish Molding Replacement
  2. Front Side Door Window Upper Reveal Molding Replacement
  3. Disconnect the electrical connector.
1 Outside Rearview Mirror Fastener[ 3x ]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Outside Rearview Mirror
Procedure
Inspect the mirror for proper operation before installing the door trim.
