Rear Closure Fixed Handle Applique Replacement
 Courtesy of GENERAL MOTORS COMPANY
|

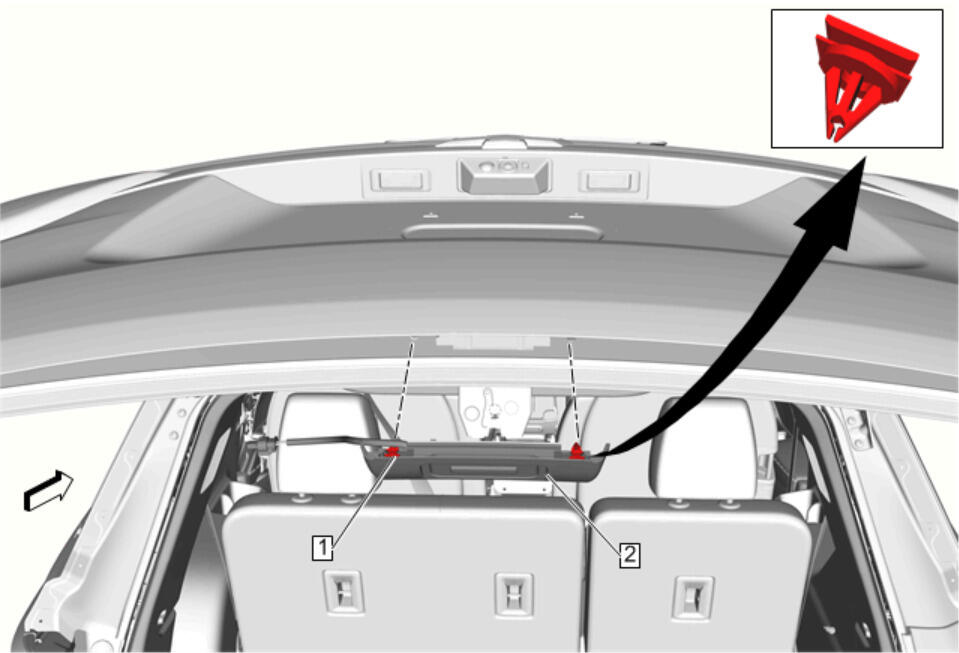

| Callout |
Component Name |
Preliminary Procedure
Open the liftgate. |
| 1 |
Rear Closure Fixed Handle Applique Retainer [ 2x ] |
| 2 |
Rear Closure Fixed Handle Applique Procedure
- Release the retainers.
- Disconnect the electrical connector:
- Close the liftgate.
|
