Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

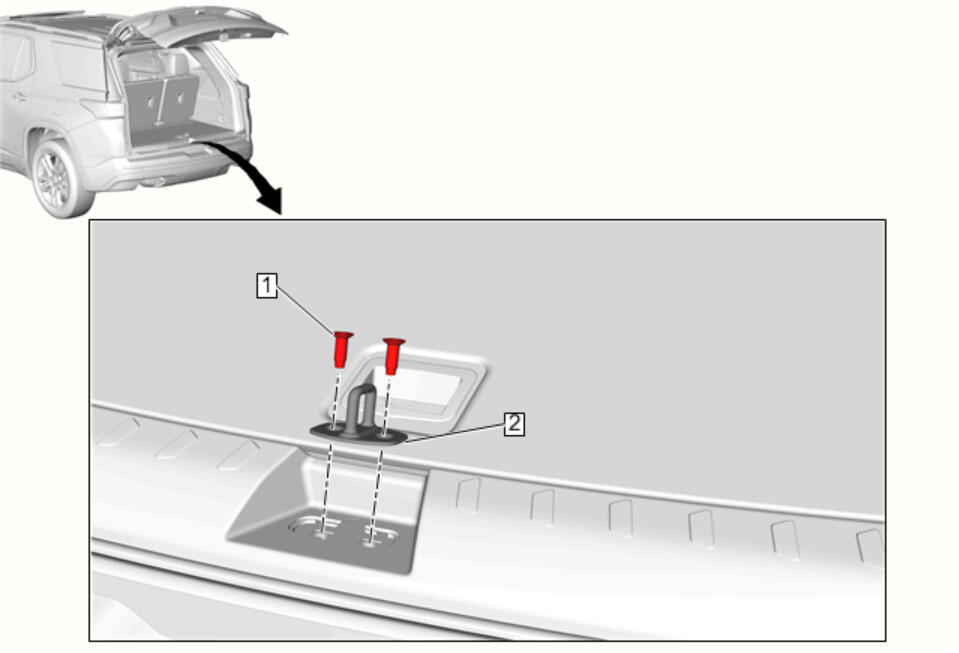

Callout	Component Name
1	Liftgate Latch Striker Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
