Removal Procedure

  1. GM4373101Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Access Hole Cover (1) - Remove

    2. NOTE:
    • USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component.
    • Around 10 - 12 rotations is enough to allow the Front Side Door Outside Handle Lock Cylinder to be removed.
  2. Front Side Door Outside Handle Lock Cylinder Screw (2) - Loosen

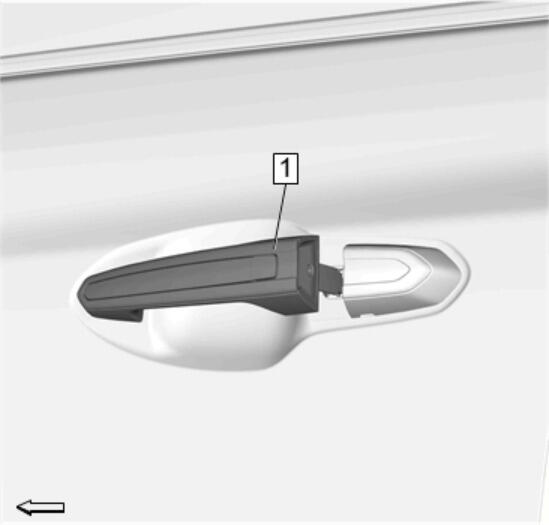

  3. GM4294911Courtesy of GENERAL MOTORS COMPANY

    Pull the door handle (1) out to the open position.

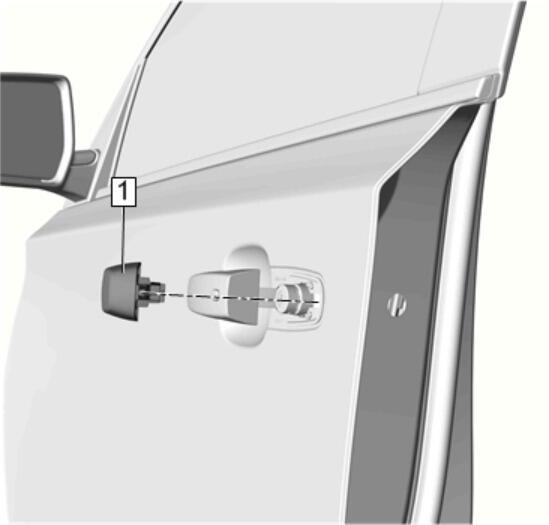

  4. GM4692088Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Lock Cylinder Bezel (1) - Remove

  5. GM4184666Courtesy of GENERAL MOTORS COMPANY

    Using the appropriate tool, remove the front side door lock cylinder opening cover (1) from the lock cylinder insulator.(2)
