Installation Procedure

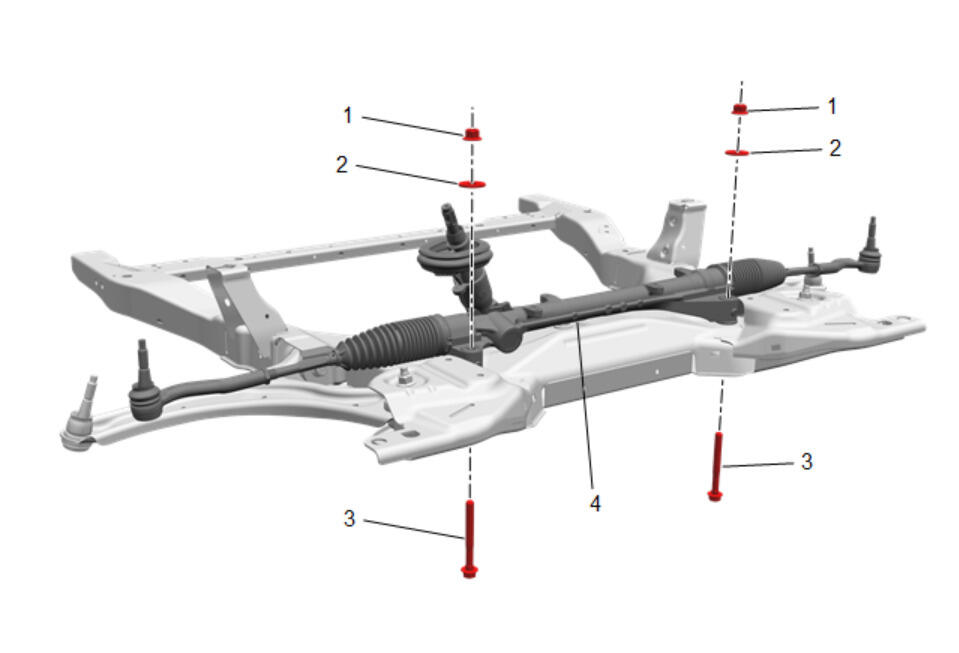

Rack and Pinion Steering Gear (4) @ Drivetrain and Front Suspension Cradle - Install
- Steering Gear Bolt (3) - Install NEW [2x]
- Steering Gear Washer (2) - Install [2x]
- Steering Gear Nut (1) - Install [2x]
- Steering Gear Bolt (3) - Tighten [2x]
- First Pass: 100 N.m (74 lb ft)
- Final Pass: 90 - 105 degrees
- Steering Gear Heat Shield - Install - Steering Gear Heat Shield Replacement
- Front Stabilizer Shaft - Install - Front Stabilizer Shaft Replacement

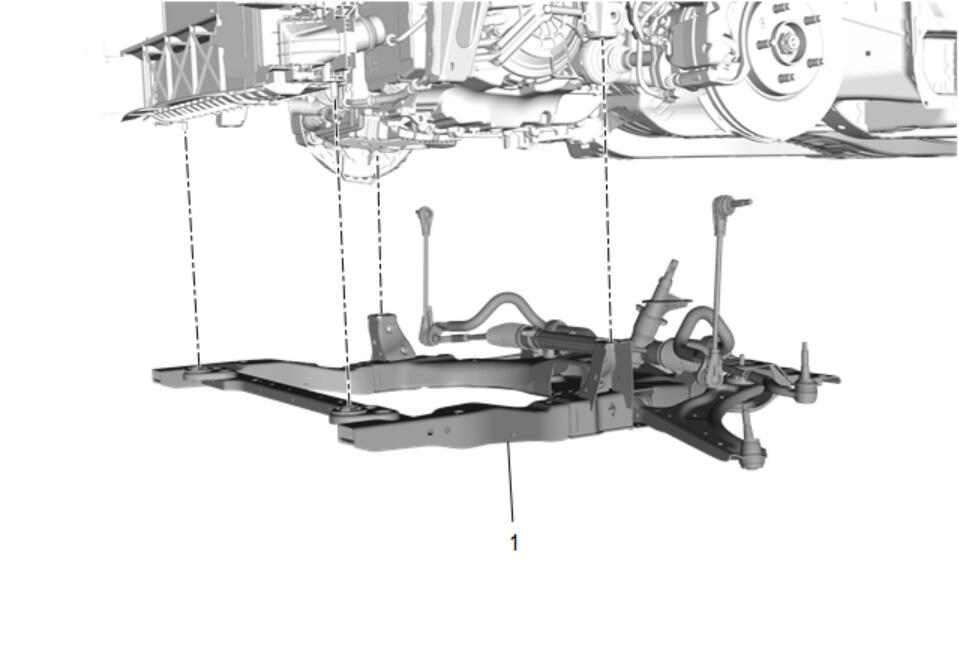

Drivetrain and Front Suspension Cradle (1) - Install - Drivetrain and Front Suspension Cradle Removal and Installation (AWD) , or Drivetrain and Front Suspension Cradle Removal and Installation (FWD)
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Calibrate the steering angle sensor. Steering Wheel Angle Sensor Centering
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
CAUTION:
