HVAC Components

Courtesy of GENERAL MOTORS COMPANY

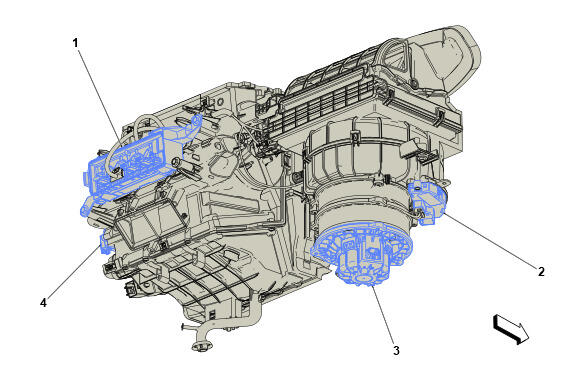

HVAC Components

Component Name	Callout
K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4	1
K8 Blower Motor Control Module K8 Blower Motor Control Module X1 , or K8 Blower Motor Control Module X2	2
M8 Blower Motor	3
E40 Electrical Auxiliary Heater E40 Electrical Auxiliary Heater X1 , or E40 Electrical Auxiliary Heater X2	4
